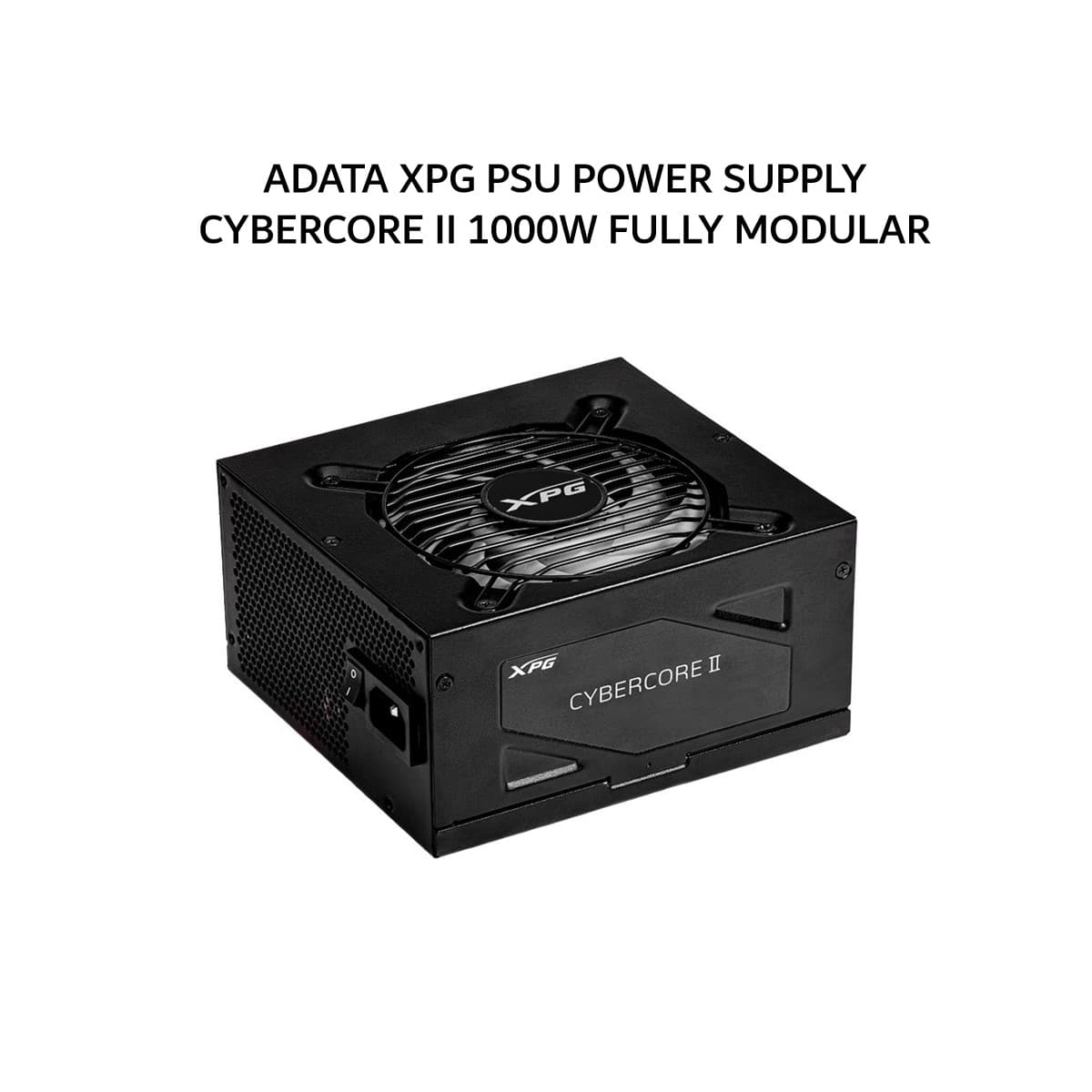

ADATA XPG PSU POWER SUPPLY CYBERCORE II 1000W (80+ PLATINUM) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

Deskripsi

ADATA XPG PSU POWER SUPPLY CYBERCORE II 1000W (80+ PLATINUM) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

CYBERCORE II

BETTER THAN ULTIMATE

In light of the new Intel ATX 3.0 & ATX 3.1 design guide specifications, the XPG CYBERCORE 80 PLUS Platinum series is getting an upgrade. With stricter voltage and current regulation guidelines changes needed to be implemented in order to safely and efficiently accommodate next-generation hardware. XPG has even upgraded the CYBERCORE cooling solution with a top-of-the-line XPG VENTO PRO 120 PWM Fan by Nidec to deliver optimum performance. As always, XPG is determined to provide gamers with products that meet the latest hardware demands.

Next-Gen Ready

XPG CYBERCORE II series power supply units are compatible with Intel ATX 3.0 & ATX 3.1 design guide specifications. All units come with a 12VHPWR connector as well. Upgrade your system to an ATX 3.0 & ATX 3.1 ready power supply and be fully prepared for the next generation of high-performance components! Whether you're a gamer, creator, or AI developer, an ATX 3.0 & ATX 3.1 PSU is the new standard for future hardware. Don’t get left behind.

Cybenetics ETA PLATINUM and LAMBDA A- Certified

XPG CYBERCORE II series is certified by the highest Cybenetics quality standards.

All configurations have achieved ETA PLATINUM grade while still maintaining LAMBDA A- rating for the noise even with our most compact form factor, reaching A- with 230V for the 1300W version. This is a statement of our commitment to deliver the absolute best performance for all of our PC users.XPG CYBERCORE series is certified by the highest Cybenetics quality standards.

XPG VENTO PRO 120 PWM FAN by Nidec

XPG CYBERCORE II is the latest XPG and Nidec collaboration, utilizing our highest tier XPG VENTO PRO 120 PWM Fan for its high cooling efficiency, featuring Dual Bearing and patented technology to maintain an excellent balance between noise and life expectancy (60,000 hours at 60℃)

Dimensions (L x W x H) 160 x 150 x 86mm

Cybenetics Rating PLATINUM

80 Plus Rating PLATINUM

ATX Version ATX 3.0 & ATX 3.1

Protections OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

Certification CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

PFC > 0.99

Input Voltage 100-240V

Input Current 13A

Input Frequency 50-60Hz

DC Output Voltage +5V | +3.3V | +12V | -12V | +5Vsb

Total Output 1000W

Power Excursion 2000W (*up to 200% of the PSU's rated power for 100μs)

Operating Temperature 50°C

Fan Size 120mm

Fan Bearing Double Ball Bearing

Fan Speed 2,150 RPM

MTBF 125,000 hours @ 25°C

ATX 24 Pin Connector 1

EPS 8 Pin Connector 2

PCI-E 6+2 Pin Connector 6

Molex 4 Pin Connector 4

12VHPWR (12 + 4) Connector (600W) 1

SATA Connector 8

Weight Product+cables：1.96kg+1.35kg (4.32lb+3.0lb) ±5%, with Package：4.13kg (9.1lb) ±5%

Warranty 10 Years

Floppy 4 Pin Connector 1
