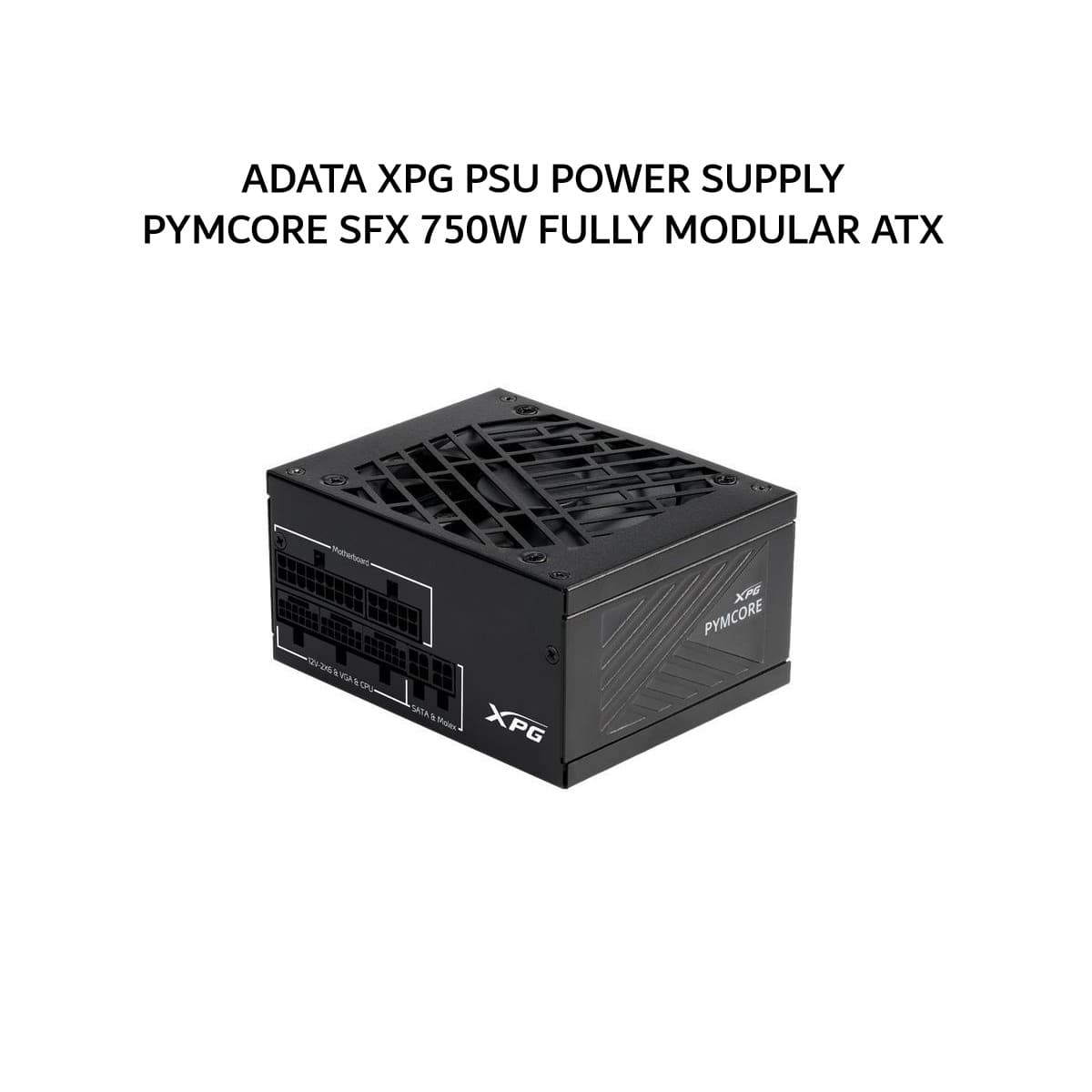

ADATA XPG PSU POWER SUPPLY PYMCORE SFX 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

Deskripsi

ADATA XPG PSU POWER SUPPLY PYMCORE SFX 750W (80+ GOLD) FULLY MODULAR ATX 3.1 PCIE 5.0 BLACK

SPESIFICATION:

Dimensions (L x W x H) : 125 x 100 x 63.5 mm

Cybenetics Rating : Cybenetics GOLD

80 Plus Rating : 80 PLUS GOLD

ATX Version : Intel ATX v3.1

Protections : OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

PFC : 0.99

Input Voltage : 100-240V

Input Current : 10A

Input Frequency : 50 - 60Hz

DC Output Voltage : +5V | +3.3V | +12V | -12V | +5Vsb

Total Output : 850W: +5V/+3.3V: 20A, +12V: 70.8A, -12V: 0.4A, +5Vsb: 3A

Power Excursion : 750W: 1997W (up to 235% of PSU’s rated of power for 100s)

Operating Temperature : 50

Fan Size : 92mm

Fan Bearing : FDB (Fluid Dynamic Bearing)

Fan Speed : 750W: 2300±10 RPM

MTBF : 100,000 hours at 25 and 100% load excluding the DC Fan

ATX 24 Pin Connector : 1

EPS 8 Pin Connector : 2

PCI-E 6+2 Pin Connector : 3

Molex 4 Pin Connector : 2

12V-2x6 / 12VHPWR (12+4) Connector (600W) :1

SATA Connector : 6

Warranty :7 Years
