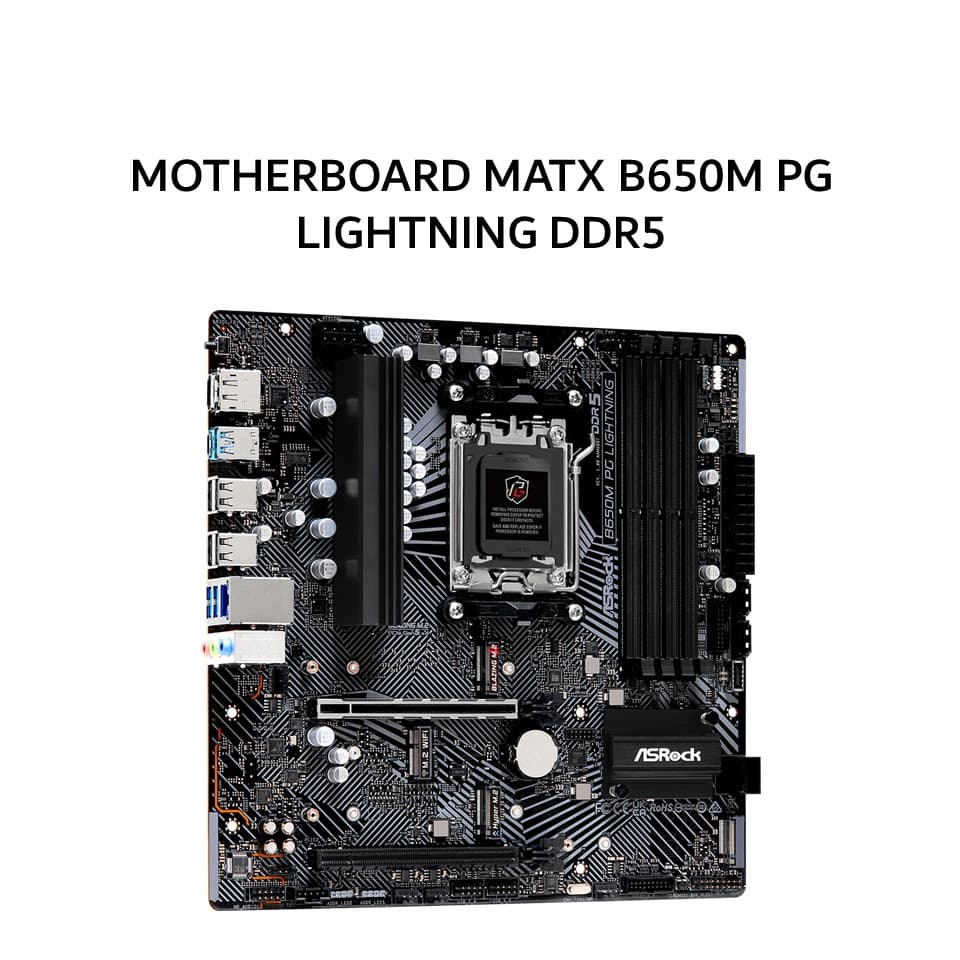

ASROCK MOTHERBOARD MATX B650M PG LIGHTNING DDR5 AM5 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: ASRock

Type: Motherboard MATX B650M PG Lightning

Chipset: AMD B650

Socket: AM5

CPU Support: AMD Socket AM5 Ryzen™ 9000 8000 and 7000 Series Processors

Memory Technology: Dual Channel DDR5

Memory Slot: 4x DDR5 DIMM

Memory Support: DDR5 ECC non-ECC Unbuffered up to 7200+ OC

Max Memory: 256GB

Graphics: Integrated AMD RDNA Graphics support may vary by CPU

Graphics Output:

1x HDMI 2.1

1x DisplayPort 1.4

Audio:

7.1 Channel HD Audio Realtek ALC897

Nahimic Audio

LAN:

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Expansion Slot:

1x PCIe 4.0 x16 Slot

1x PCIe 3.0 x16 Slot

M.2 Slot:

1x Blazing M.2 PCIe Gen5 x4

1x Hyper M.2 PCIe Gen4 x4

1x M.2 PCIe Gen4 x2

1x M.2 Key E WiFi Slot

Storage:

4x SATA3 6Gb/s

RAID Support: RAID 0 RAID 1 RAID 10

USB:

1x USB 3.2 Gen2 Type-C Rear

1x USB 3.2 Gen2 Type-A Rear

1x USB 3.2 Gen1 Type-C Front

6x USB 3.2 Gen1 Type-A

8x USB 2.0

Rear Interface:

1x HDMI Port

1x DisplayPort 1.4

1x USB 3.2 Gen2 Type-A

1x USB 3.2 Gen2 Type-C

2x USB 3.2 Gen1 Type-A

4x USB 2.0

1x RJ-45 LAN Port

1x BIOS Flashback Button

HD Audio Jacks Line in Front Speaker Microphone

Internal Connector:

1x SPI TPM Header

1x Power LED Speaker Header

1x RGB LED Header

3x Addressable LED Headers

1x CPU Fan Connector

1x CPU Water Pump Fan Connector

3x Chassis Water Pump Fan Connectors

1x 24-pin ATX Power Connector

1x 8-pin 12V Power Connector

1x Front Panel Audio Connector

1x Thunderbolt AIC Connector

2x USB 2.0 Headers

2x USB 3.2 Gen1 Headers

1x Front Panel Type C USB 3.2 Gen1 Header

Form Factor: Micro ATX

Dimension: 244 x 244 mm

OS Support: Windows 10 64-bit Windows 11 64-bit
