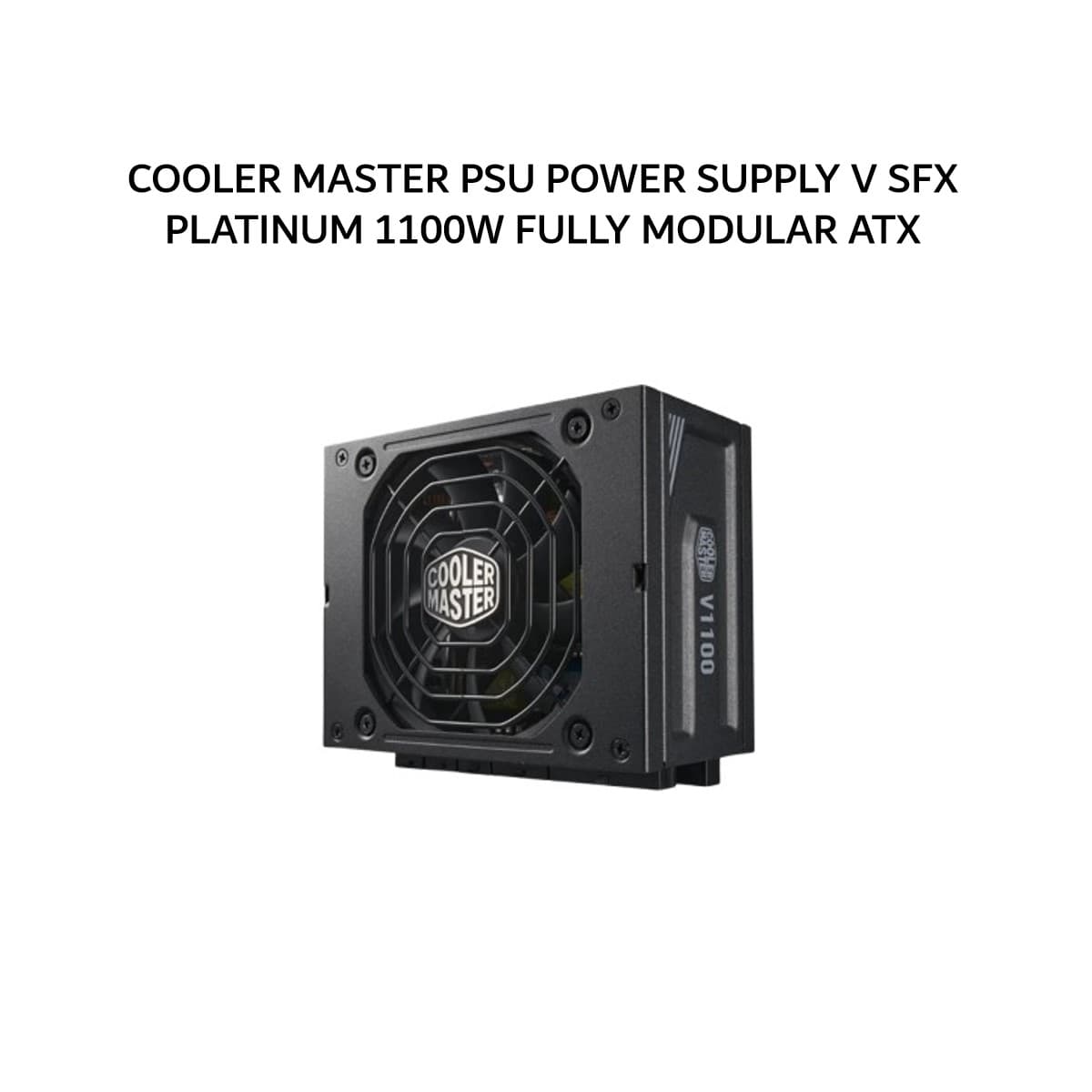

COOLER MASTER PSU POWER SUPPLY V SFX PLATINUM 1100W (80+ PLATINUM) FULLY MODULAR ATX 3.1 12V-2X6 BLACK 10Y

Deskripsi

COOLER MASTER PSU POWER SUPPLY V SFX PLATINUM 1100W (80+ PLATINUM) FULLY MODULAR ATX 3.1 12V-2X6 BLACK 10Y

SPESIFIKASI

Model MPZ-B001-SFAP-B**

Series V SFX Series

Category Above 750W

Form Factor SFX

Watts 1100W

ATX Version SFX 12V Ver. 3.42

ATX Version ATX 3.0

PFC Active PFC

Input Voltage 100-240V

Input Voltage Range Full Range

Input Current 14-6.5A

Input Frequency 50-60Hz

Dimensions 100 x 125 x 63.5 mm

Fan Size 92mm

Fan Bearing FDB

Efficiency>92% @ Typical Load

80 Plus Efficiency Platinum

80 Plus Rating 80 PLUS Platinum

ErP 2014 Lot 3 Yes

Operating Temperature 0-50C

Power Good Signal 100-150 ms

Hold Up Time ≥16ms at 70% Load

MTBF >100,000 Hours

Protections OPP OVP OTP OCP SCP UVP Surge & Inrush Protection

Regulatory TUV cTUVus CE BSMI FCC CCC EAC UKCA

ATX 24 Pin Connectors 1

EPS 4+4 Pin Connectors 1

EPS 8 Pin Connector 1

PCI-e 6+2 Pin Connectors 3

12VHPWR Connector 1

SATA Connectors 8

Peripheral 4 Pin Connectors 4

Modular Fully Modular
