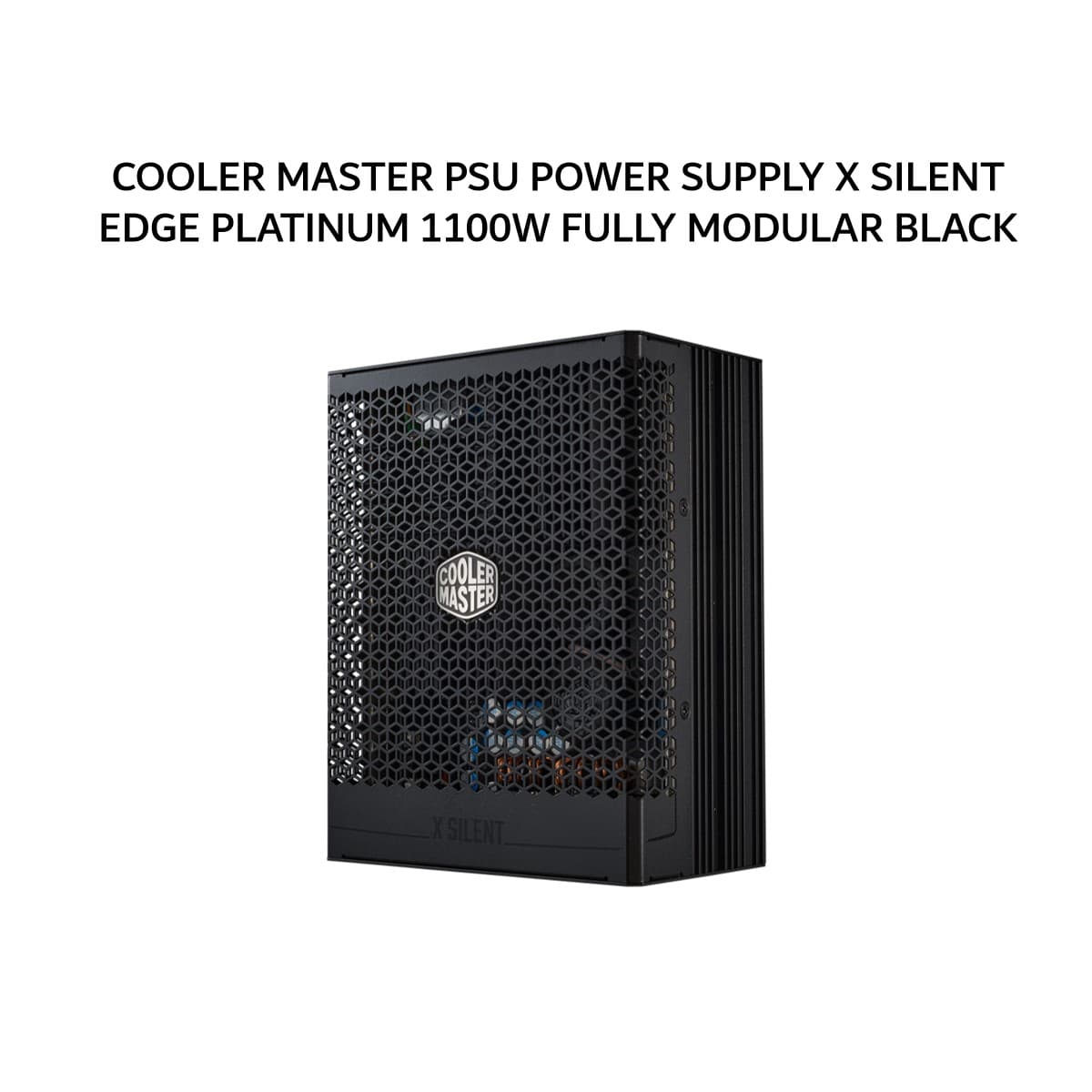

COOLER MASTER PSU POWER SUPPLY X SILENT EDGE PLATINUM 1100W (80+ PLATINUM) FULLY MODULAR ATX 3.1 12V-2X6 BLACK 15Y

Deskripsi

COOLER MASTER PSU POWER SUPPLY X SILENT EDGE PLATINUM 1100W (80+ PLATINUM) FULLY MODULAR ATX 3.1 12V-2X6 BLACK 15Y

ModelMPS-B001-AZBP

ATX VersionATX 12V Ver. 3.1

PFCActive PFC

Input Voltage200-240V

Input Current6.1A (Max.)​

Input Frequency50-60Hz

Dimensions (L x W x H)180 x 150 x 86 mm

Efficiency≥ 94% @ Typical Load

80 PLUS Rating80 PLUS Platinum

ErP 2014 Lot 3Yes

Operating Temperature0-40°C

Power Good Signal100 - 150 ms

Hold Up Time≥ 16ms

MTBF>100,000 Hours

ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection

RegulatoryTUV, CE, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)

ATX 24 Pin Connectors1

EPS 4+4 Pin Connectors1

EPS 8 Pin Connector1

SATA Connectors12

Peripheral 4 Pin Connectors4

PCI-e 6+2 Pin Connectors4

12V-2x6 Connectors1

USB 10P Connector1

PMBus 5 Pin Connector1

External Fan 4Pin Connectors1

Input Voltage Range230V

ATX VersionATX 3.1

SeriesX Series

80 Plus EfficiencyPlatinum

CategoryAbove 750W

Form FactorATX

Watts1100W
