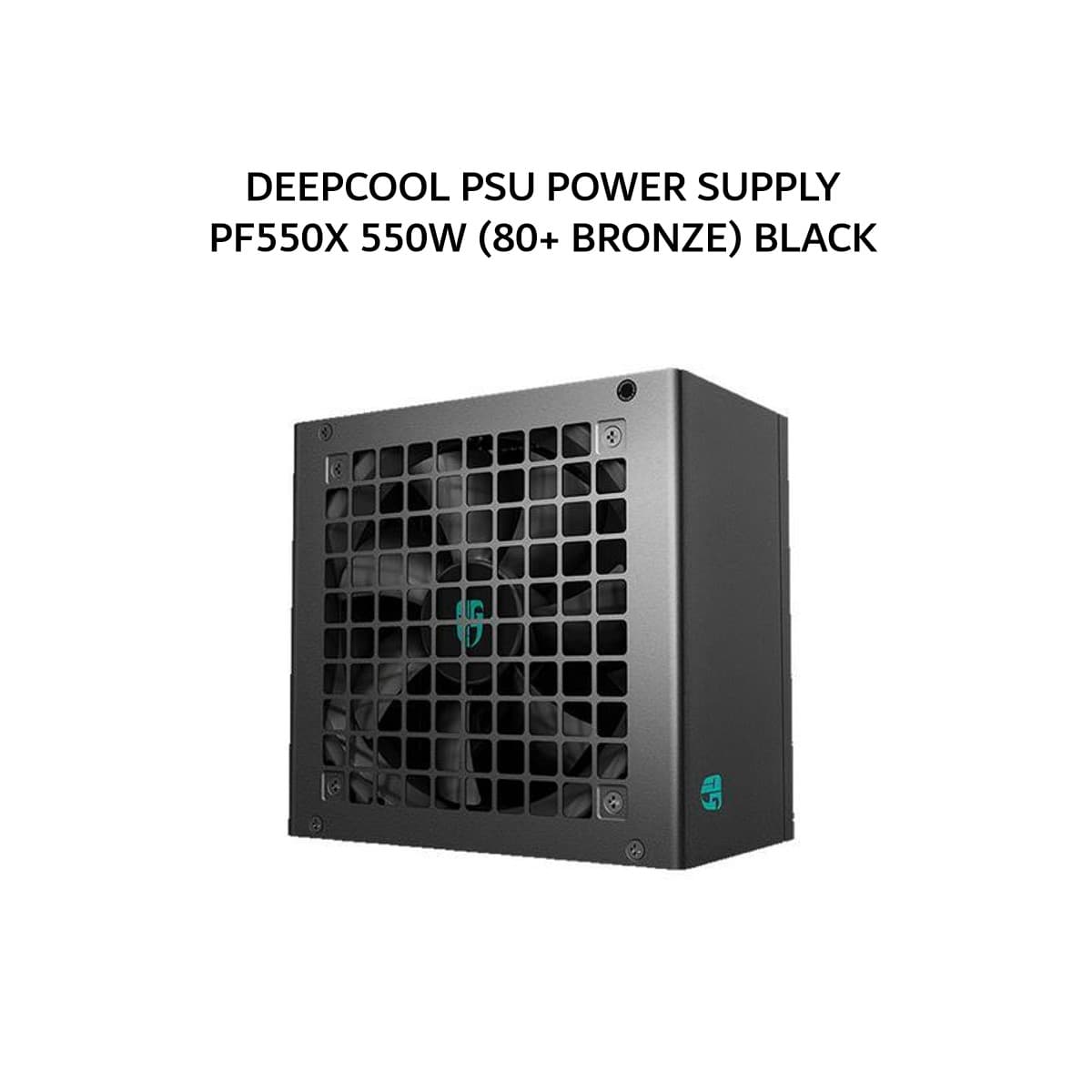

DEEPCOOL PSU POWER SUPPLY PF550X 550W (80+ BRONZE) BLACK 3Y

Deskripsi

DEEPCOOL PSU POWER SUPPLY PF550X 550W (80+ BRONZE) BLACK 3Y

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS

The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.

TAIWANESE + JAPANESE PREMIUM CAPACITORS

By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.

The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.

RELIABLE TOPOLOGY

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION

Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

Strict Safety Standard

Strictly following global safety standards, beyond competitors, including the 40 and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

EXCEPTIONAL WARRANTY

Standing behind the high standards Gamer Storm has set for our products, we provide a 3-year limited warranty to ensure worry-free service and support for our customers.

Technical Spec

Type ATX12V V2.52

Product Dimensions 150×140×86mm (W x L x H)

Efficiency certification 80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze

Fan Size 120mm

Fan Bearing Longlife HYB

Topology Active PFC+DC to DC

Capacitors Taiwanese + Japanese Electrolytic Capacitors

Power Good Signal 100-150ms

Hold Up Time ≥16ms(75% Load)

Efficiency ≥88% Under Typical Load(50% Loading)

Protection OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO

Operation Temperature 0-40C

Regulatory CE/TUV-RH/CCC/RCM/KC

Erp Regulation ErP 2014

Environment Protection WEEE/ RoHS/Triman
