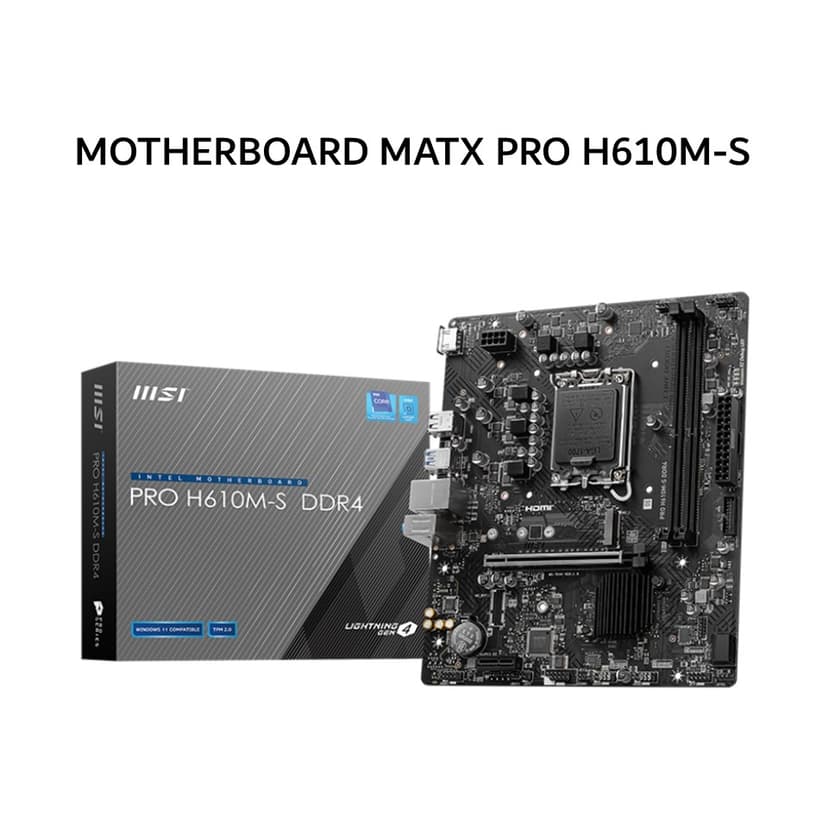

MSI MOTHERBOARD MATX PRO H610M-S DDR4 LGA1700 /INTEL 3Y

SPESIFIKASI

Brand: MSI

Model: PRO H610M S DDR4

Chipset: Intel H610

CPU Socket: LGA 1700

Processor Support: Intel Core 14th Gen Intel Core 13th Gen Intel Core 12th Gen Intel Pentium Gold Intel Celeron

Memory Slot: 2x DDR4

Maximum Memory Capacity: 64 GB

Memory Speed Support: DDR4 1866 2133 2400 2667 2800 2933 3000 3066 3200 MHz

Memory Channel: Dual Channel

Memory Type: Non ECC Unbuffered

Integrated Graphics Output: HDMI

HDMI Version: HDMI 1.4

Maximum Resolution: 4K 30Hz

Expansion Slots:

PCIe x16: 1 Slot PCIe 4.0

PCIe x1: 1 Slot PCIe 3.0

Audio: Realtek ALC897

Audio Channels: 7.1 Channel HD Audio

Storage:

M.2 Slot: 1x PCIe 3.0 x4

M.2 Size Support: 2280 2260 2242

SATA: 2x SATA 6G

USB Ports Rear:

USB 2.0: 4 Ports

USB 5Gbps Type A: 2 Ports

USB Ports Front:

USB 2.0: 4 Ports

USB 5Gbps Type A: 2 Ports

LAN: Realtek RTL8111H Gigabit LAN

Internal Connectors:

ATX Power Connector: 1

CPU Power Connector: 1

CPU Fan Header: 1

System Fan Header: 1

Front Panel Connector: 2

Chassis Intrusion: 1

Front Audio Connector: 1

COM Port Header: 1

TPM Header: TPM 2.0 Support

LED Feature: EZ Debug LED

Back Panel Ports:

HDMI

USB 2.0

USB 5Gbps Type A

LAN Port

Audio Connectors

Operating System Support: Windows 11 64 bit Windows 10 64 bit
