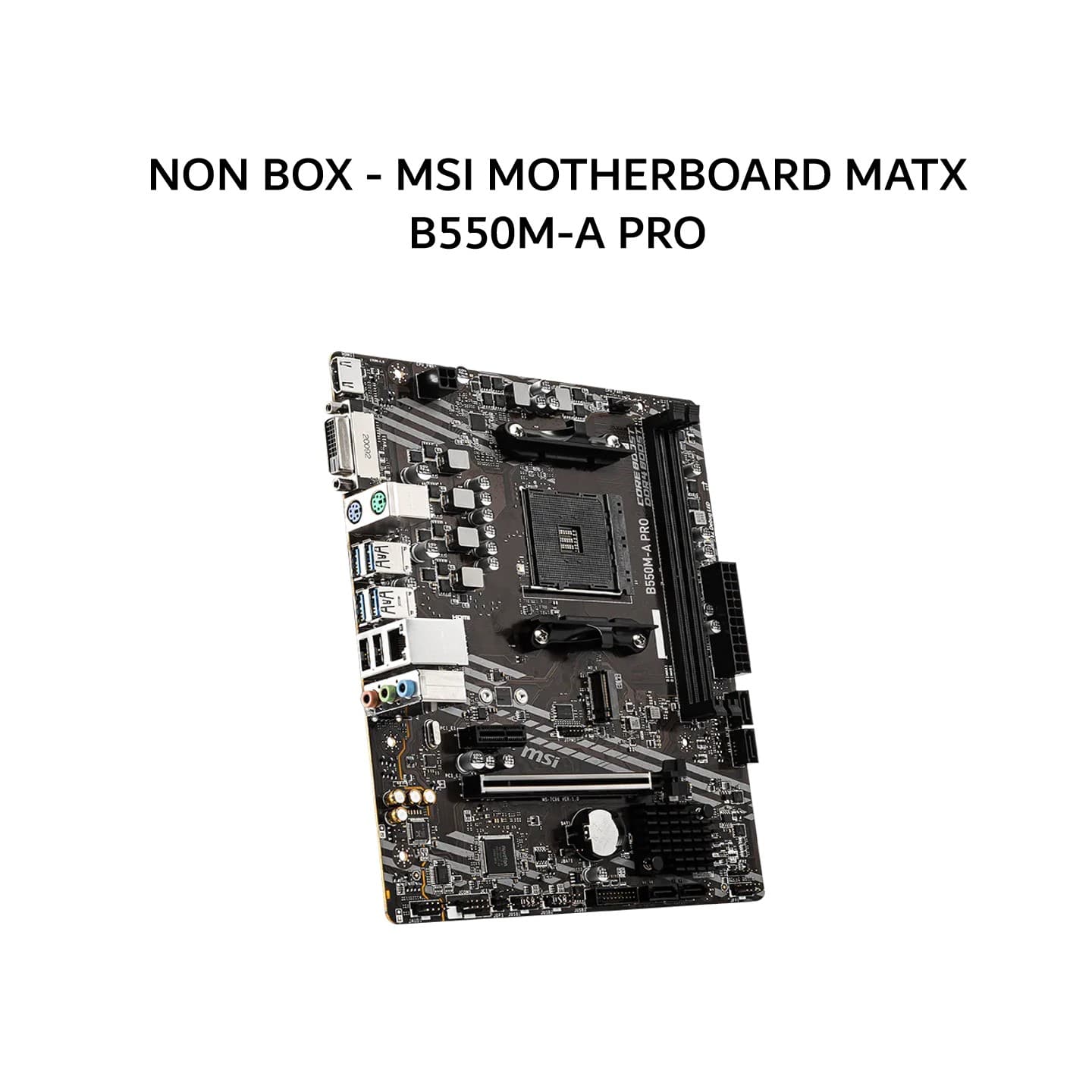

NON BOX - MSI MOTHERBOARD MATX B550M-A PRO DDR4 AM4 /AMD 3Y

Deskripsi

NON BOX - MSI MOTHERBOARD MATX B550M-A PRO DDR4 AM4 /AMD 3Y

Motherboard MSI B550M-A PRO (AM4, AMD, B550, DDR4, USB3.2, SATA3)

Garansi Resmi 3 Tahun

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

EXPANSION SLOT

1x PCIe 3.0 x1 slot

1x PCIe 4.0/3.0 x16 slot

USB

AMD B550 Chipset

2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

AUDIO

Realtek® ALC892/ALC897 Codec

7.1-Channel High Definition Audio

LAN

1x Realtek® RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 4-pin ATX 12V power connector

4x SATA 6Gb/s connectors

1x M.2 slots (M-Key)

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1xTPM module connector

1x Clear CMOS jumper
