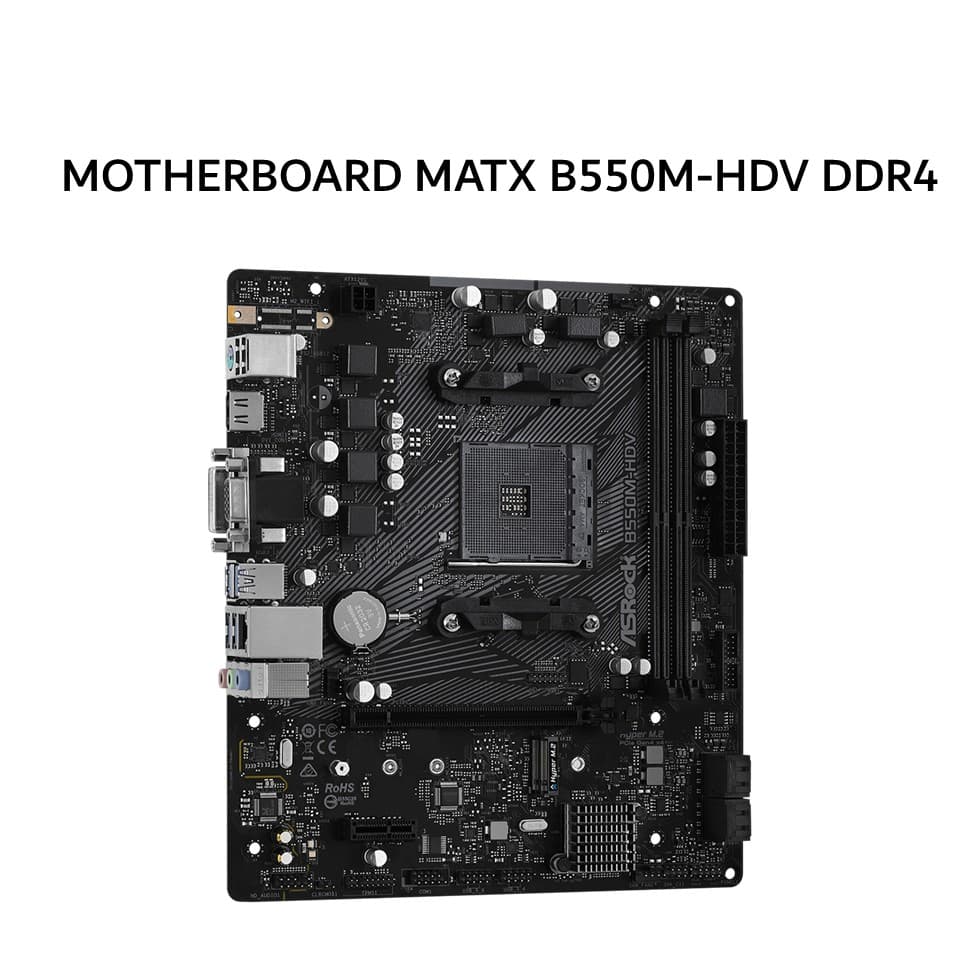

ASROCK MOTHERBOARD MATX B550M-HDV DDR4 AM4 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: ASRock

Model: B550M-HDV DDR4

Chipset: AMD B550

CPU Socket: AM4

Processor Support: AMD Ryzen 3000 3000 G Series 4000 G Series 5000 5000 G Series

Memory Slot: 2x DDR4

Maximum Memory Capacity: 64 GB

Memory Speed Support: DDR4 2133 2400 2667 2933 3200 3466 3600 3733 3800 3866 4000 4133 4200 4266 4333 4400 4466 4533 4600 MHz OC

Memory Channel: Dual Channel

Memory Type: Non ECC Unbuffered

Integrated Graphics Output: HDMI DVI-D D-Sub

HDMI Version: HDMI 2.1

Maximum Resolution: 4K 60Hz

Expansion Slots:

PCIe x16: 1 Slot PCIe 4.0

PCIe x1: 1 Slot PCIe 3.0

Audio: Realtek ALC887 ALC897

Audio Channels: 7.1 Channel HD Audio

Storage:

M.2 Slot: 1x PCIe 4.0 x4

M.2 Size Support: 2280 2260 2242

SATA: 4x SATA 6G

USB Ports Rear:

USB 2.0: 2 Ports

USB 5Gbps Type A: 4 Ports

USB Ports Front:

USB 2.0: 4 Ports

USB 5Gbps Type A: 2 Ports

LAN: Realtek RTL8111H Gigabit LAN

Internal Connectors:

ATX Power Connector: 1

CPU Power Connector: 1

CPU Fan Header: 1

System Fan Header: 2

Front Panel Connector: 1

Chassis Intrusion: 1

Front Audio Connector: 1

COM Port Header: 1

TPM Header: TPM 2.0 Support

LED Feature: No

Back Panel Ports:

PS/2

HDMI

DVI-D

D-Sub

USB 2.0

USB 5Gbps Type A

LAN Port

Audio Connectors

Operating System Support: Windows 11 64 bit Windows 10 64 bit
