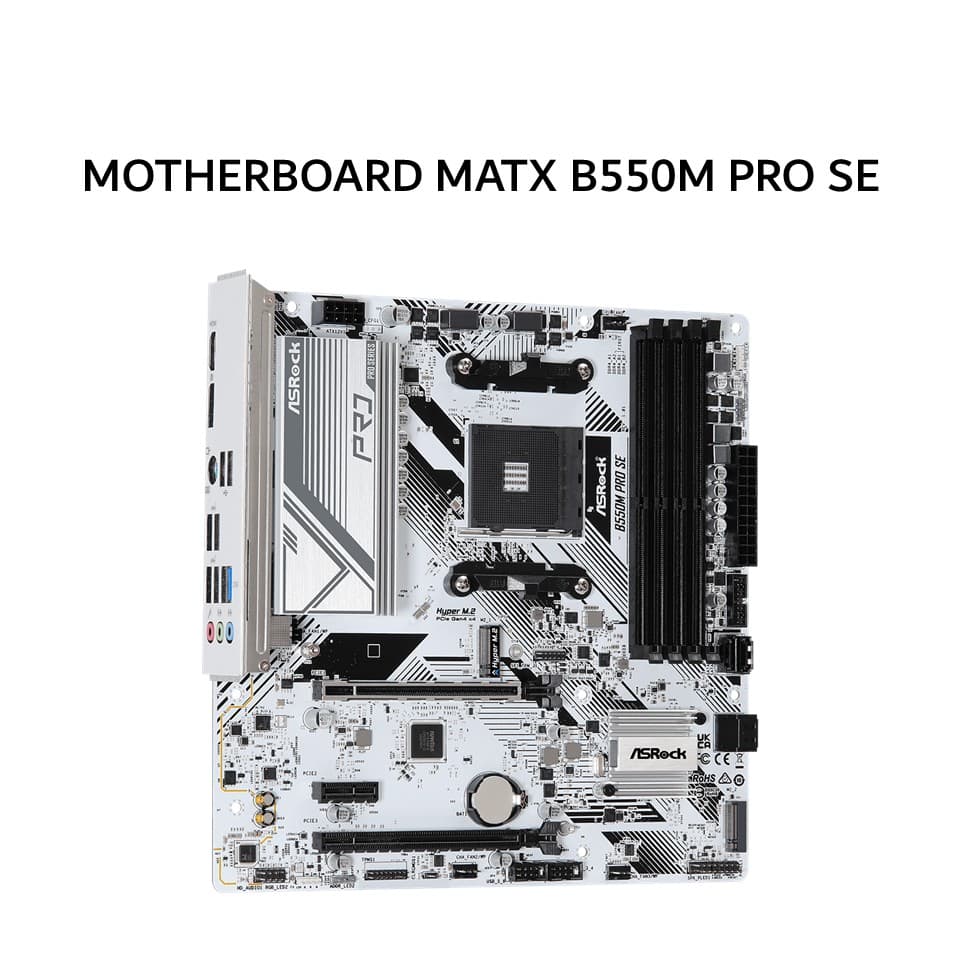

ASROCK MOTHERBOARD MATX B550M PRO SE DDR4 AM4 /AMD WHITE 3Y

Deskripsi

SPESIFIKASI

Brand: ASRock

Tipe: Motherboard MATX B550M PRO SE

Chipset: AMD PRO565

Socket: AM4

CPU Support: AMD Ryzen™ 3000 3000G Series 4000G Series 5000 and 5000G Series Desktop Processors

Memory Support: DDR4 up to 4733+ OC

Memory Slot: 4x DDR4 DIMM

Max Memory: 128GB

Expansion Slot:

2x PCIe x16

1x PCIe 3.0 x1

Storage:

1x Hyper M.2 PCIe Gen4 x4

1x M.2 PCIe Gen3 x2 SATA3

4x SATA3 6Gb/s

Graphics Output:

1x HDMI 2.1

1x DisplayPort 1.4

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG

Audio: 7.1 Channel HD Audio Realtek ALC897

Rear Interface:

1x PS/2 Mouse Keyboard Port

1x HDMI

1x DisplayPort 1.4

4x USB 3.2 Gen1

2x USB 2.0

1x RJ-45 LAN Port

HD Audio Jacks Line in Front Speaker Microphone

Internal Connector:

1x SPI TPM Header

1x Power LED Speaker Header

2x RGB LED Headers

2x Addressable LED Headers

1x CPU Fan Connector

3x Chassis Water Pump Fan Connectors

1x 24-pin ATX Power Connector

1x 8-pin 12V Power Connector

1x Front Panel Audio Connector

2x USB 2.0 Headers

1x USB 3.2 Gen1 Header

Accessories:

User Manual

2x SATA Data Cables

2x Screws for M.2 Sockets

Form Factor: Micro ATX

Dimension: 244 x 244 mm

OS Support: Windows 10 64-bit Windows 11 64-bit
