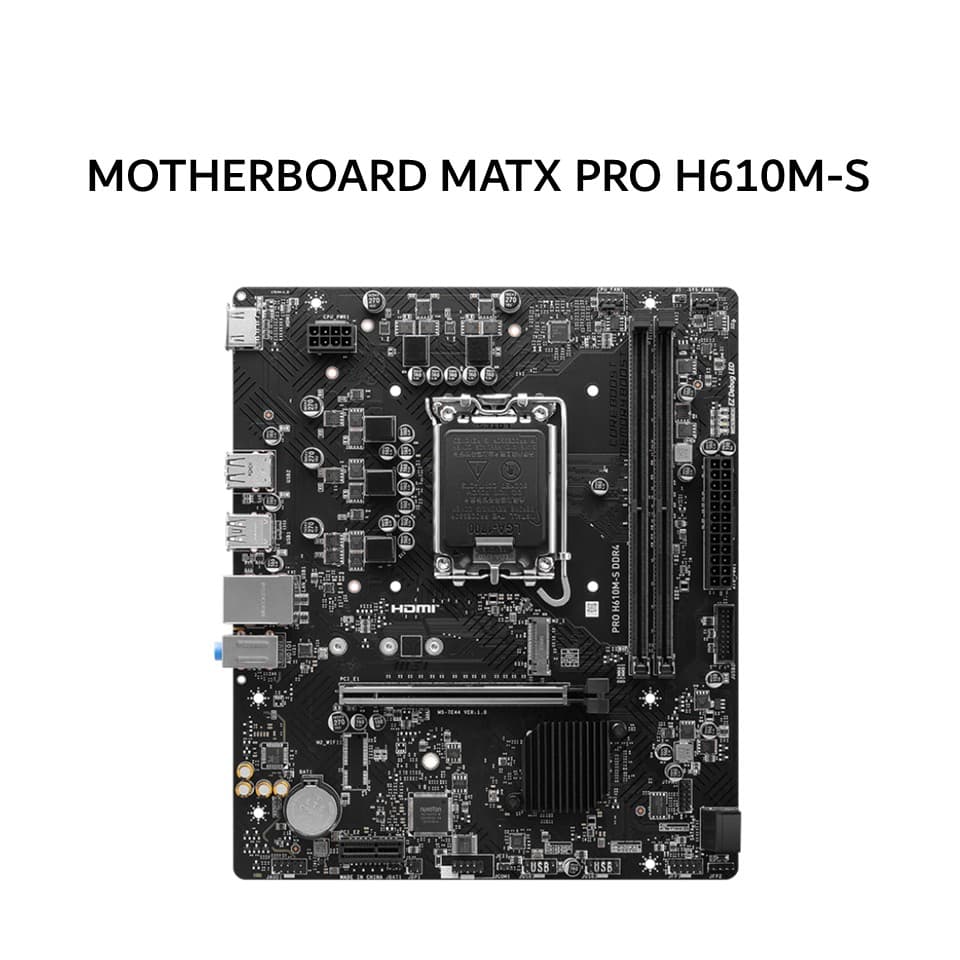

MSI MOTHERBOARD MATX PRO H610M-S WIFI DDR4 LGA1700 /INTEL 3Y

SPESIFIKASI

Brand: MSI

Model: PRO H610M-S DDR4

Chipset: Intel® H610

CPU Socket: LGA 1700

CPU Support: Intel® Core™ 14th / 13th / 12th Gen, Intel® Pentium® Gold, Intel® Celeron®

Memory Slots: 2x DDR4

Max Memory: 64 GB

Memory Speed: DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz

Memory Support: Dual Channel, Non-ECC, Un-buffered

Onboard Graphics Output: 1x HDMI™

HDMI Version: HDMI™ 1.4

Max Resolution: Up to 4K 30Hz

Expansion Slots:

1x PCI-E x16 Gen 4.0

1x PCI-E x1 Gen 3.0

Audio: Realtek® ALC897

Audio Channels: 7.1 Channel HD Audio

Storage:

1x M.2 PCIe 3.0 x4

2x SATA 6Gb/s

USB Ports:

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A

Front: 4x USB 2.0, 2x USB 5Gbps Type-A

LAN: Realtek® RTL8111H Gigabit LAN

Internal Connectors:

ATX Power Connector

CPU Power Connector

CPU Fan Header

System Fan Header

Front Panel Connector

Chassis Intrusion Connector

Front Audio Connector

COM Port Header

TPM Header (TPM 2.0 Support)

USB 2.0 Headers

LED Feature: EZ Debug LED

Back Panel Ports:

HDMI™

USB 2.0

USB 5Gbps Type-A

LAN Port

Audio Jacks

Operating System Support: Windows® 11 64-bit, Windows® 10 64-bit
