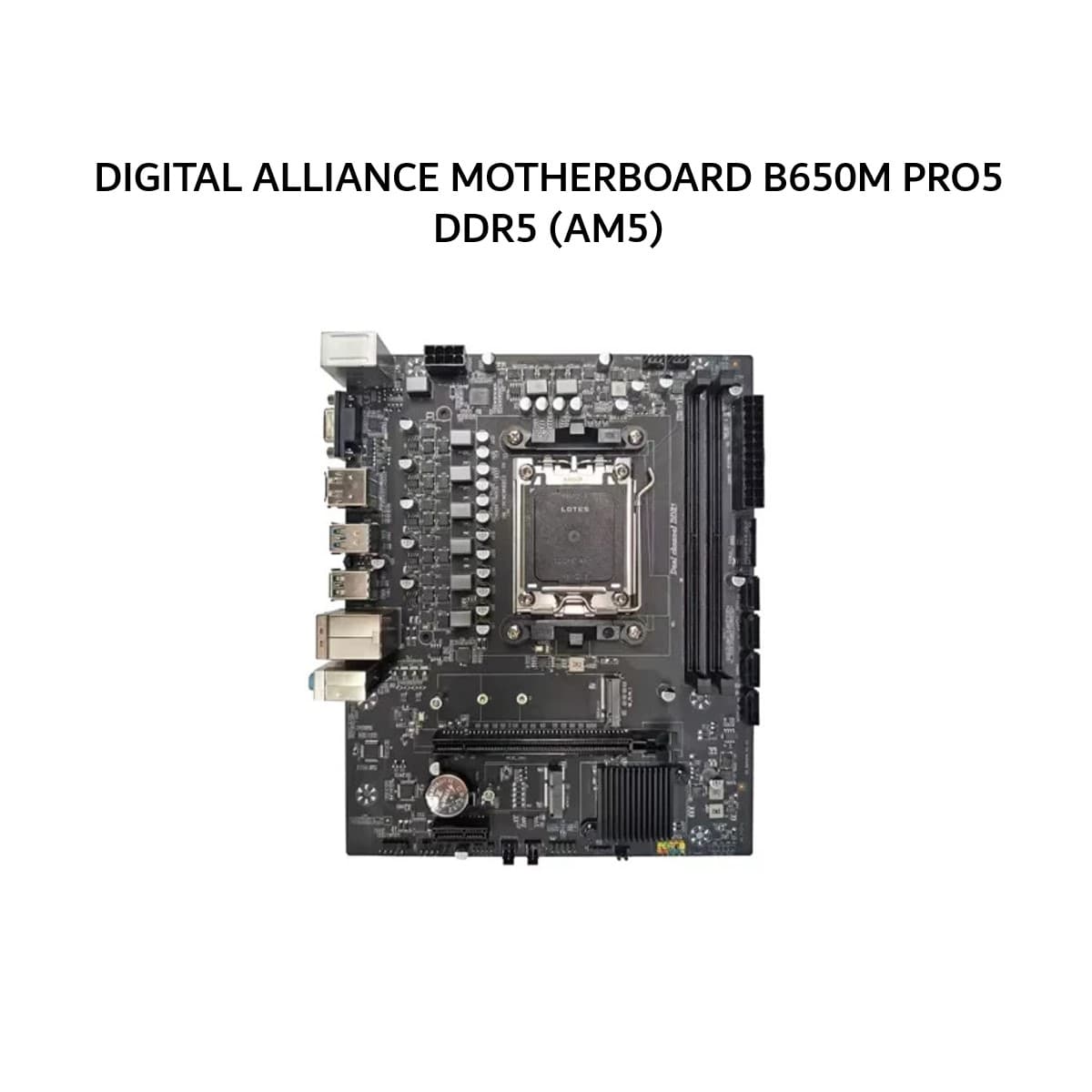

DIGITAL ALLIANCE MOTHERBOARD B650M PRO5 DDR5 (AM5) 2Y

Deskripsi

DIGITAL ALLIANCE MOTHERBOARD B650M PRO5 DDR5 (AM5) 2Y

Spesifikasi Produk:

- Model: B650M

- CPU Support: AMD AM5 Ryzen 7000 / 8000 Series Processor

- Chipset: AMD B650

- Memory: 2 × DDR5 Slots, support 4800 ~ 6000+ MHz, max capacity up to 64GB

- Storage: 1 × M.2, 4 × SATA 3.0

- Graphics Expansion Slot: 1 × PCI Express x16, 1 × PCI Express x1

- Display Output: 1 × DisplayPort, 1 × HDMI, 1 × VGA

- USB Support: 5 × USB 3.2, 7 × USB 2.0

- Audio: Realtek HD Audio Codec onboard

- LAN: 1 × Realtek 1000M LAN, 1 × M.2 WiFi Slot (PCIe protocol compatible)

- Power: 1 × 24-pin ATX Power, 1 × 8-pin ATX12V

Back Panel I/O Ports:

- 1 × PS/2 / USB 2.0

- 1 × VGA

- 1 × HDMI / DisplayPort

- 4 × USB 3.2

- 1 × LAN / USB 2.0 Combo

- Audio Port

- Clear CMOS Button

Internal I/O Ports:

- 1 × F_USB 2.0 (expandable to 2 × USB 2.0)

- 1 × USB 3.0_1 (expandable to 2 × USB 3.2)

- 1 × Front Audio Header

- 1 × COM Header

- 1 × Speaker Header

- 1 × CPU_FAN Header

- 3 × SYS_FAN Headers

- 1 × JCMOS Header

- 1 × JESPIO

Operating Environment:

- Temperature: -20°C ~ 60°C

- Humidity: 0–95% (non-condensing)

Form Factor:

- Micro ATX, 240mm × 190mm (W × L)

2 Years Warranty
