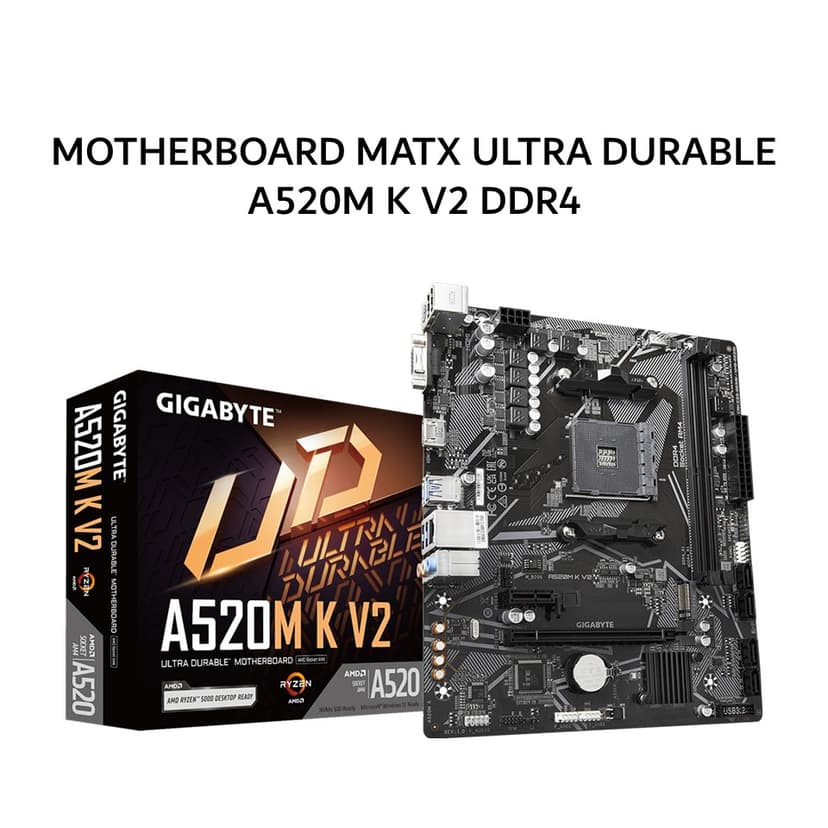

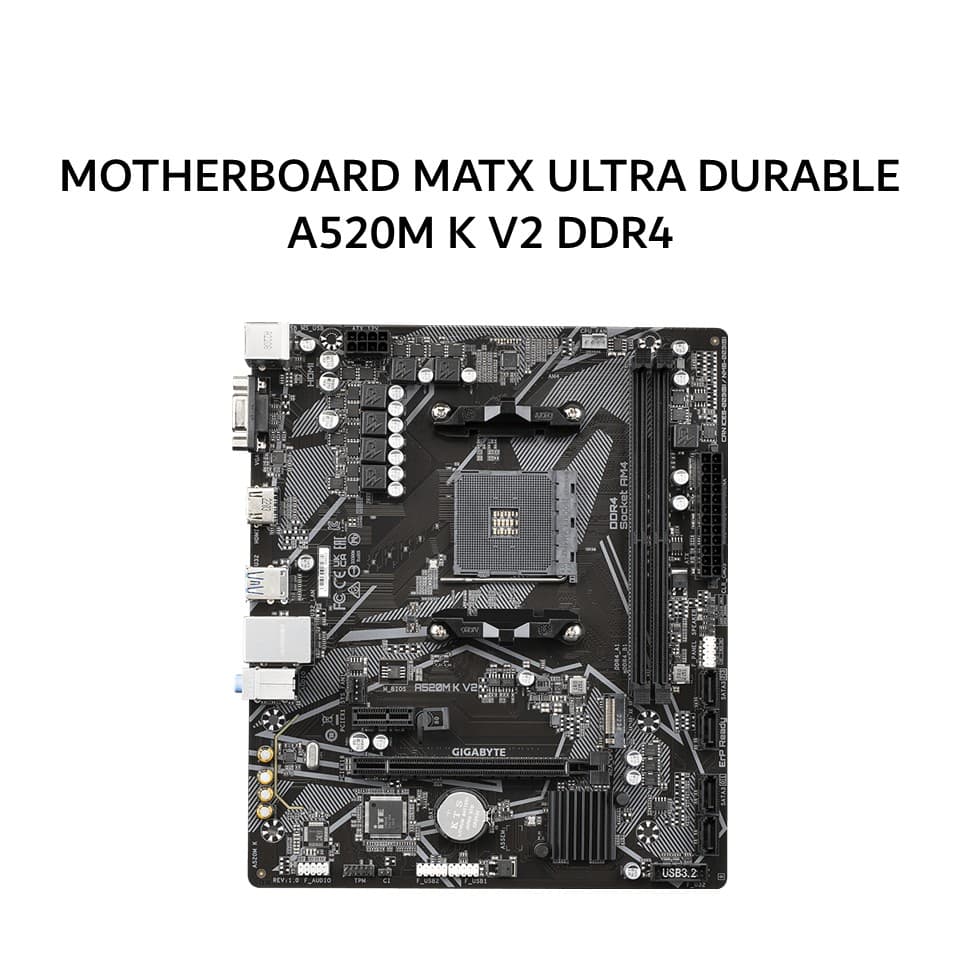

GIGABYTE MOTHERBOARD MATX ULTRA DURABLE A520M K V2 DDR4 AM4 /AMD 3Y

SPESIFIKASI

CPU Socket: AMD Socket AM4

CPU Support: AMD Ryzen 5000 G Series AMD Ryzen 5000 Series AMD Ryzen 4000 G Series AMD Ryzen 3000 Series AMD Ryzen 3000 G Series

Chipset: AMD A520

Memory Type: DDR4

Memory Slots: 2 x DDR4 DIMM

Maximum Memory: 64 GB

Memory Speed: DDR4 5100 OC up to 2133 MHz

Memory Channel: Dual Channel

Memory Support: ECC Non ECC Unbuffered XMP

Integrated Graphics Output:

D Sub: 1 x D Sub up to 1920 x 1200 60Hz

HDMI: 1 x HDMI 2.1 up to 4096 x 2160 60Hz

Audio: Realtek Audio Codec

Audio Channels: 2 4 5.1 7.1 Channel HD Audio

LAN: Realtek Gigabit LAN

Expansion Slots:

PCIe x16: 1 x PCIe 3.0 x16

PCIe x1: 1 x PCIe 3.0 x1

Storage:

M.2 Slot: 1 x M.2 PCIe 3.0 x4 x2 SATA 2280

SATA: 4 x SATA 6Gb/s

RAID Support: RAID 0 RAID 1 RAID 10

USB Ports:

USB 3.2 Gen 1 Rear: 4 x USB 3.2 Gen 1

USB 3.2 Gen 1 Header: 2 x USB 3.2 Gen 1

USB 2.0 Rear: 2 x USB 2.0

USB 2.0 Header: 4 x USB 2.0

Internal Connectors:

ATX Power Connector: 24 Pin

CPU Power Connector: 8 Pin

CPU Fan Header: 1

System Fan Header: 1

Front Panel Header: 1

Front Audio Header: 1

USB 3.2 Gen 1 Header: 1

USB 2.0 Header: 2

TPM Header: TPM 2.0

Speaker Header: 1

Clear CMOS Jumper: 1

Chassis Intrusion Header: 1

Back Panel Ports:

PS 2 Keyboard Mouse

D Sub

HDMI

USB 3.2 Gen 1

USB 2.0

RJ 45 LAN

Audio Jacks

BIOS: AMI UEFI BIOS 128 Mbit

Operating System Support: Windows 11 64 bit Windows 10 64 bit

Form Factor: Micro ATX

PCB Size: 233 x 198 mm
