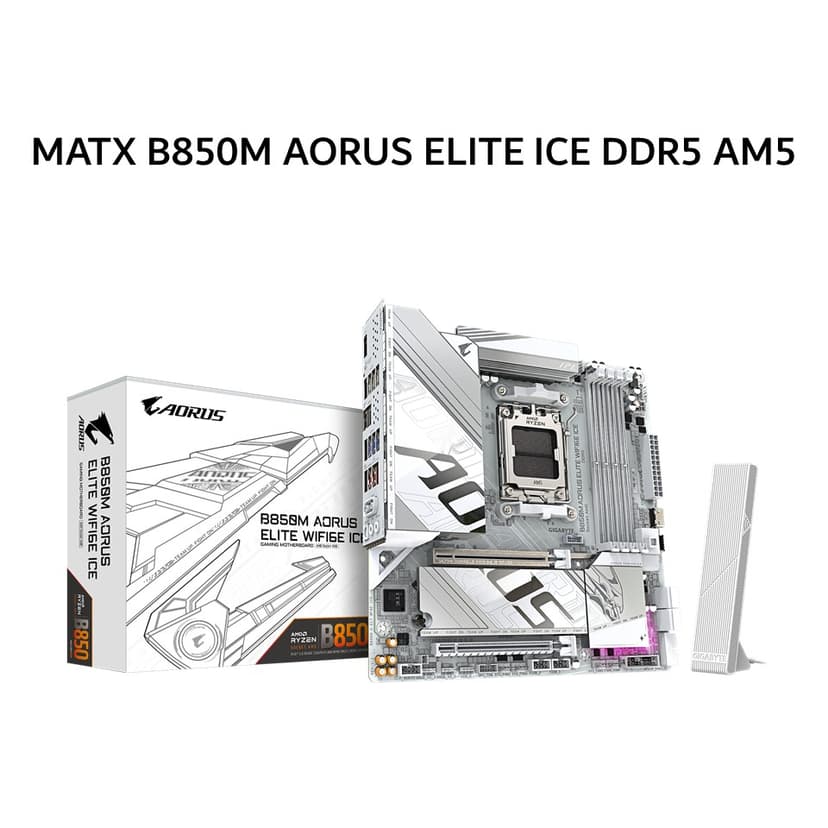

GIGABYTE MOTHERBOARD MATX B850M AORUS ELITE WIFI6E ICE DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: GIGABYTE

Model: B850M AORUS ELITE WIFI6E ICE

Chipset: AMD B850

Processor Support: AMD Socket AM5, support for AMD Ryzen™ 9000 Series / 8000 Series / 7000 Series Processors

Memory:

4x DDR5 DIMM, up to 256 GB

Memory Support: DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C) / 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s

Dual Channel Architecture

Support for AMD EXPO™ and XMP

Graphics Output:

1x DisplayPort 1.4, max resolution 3840 x 2160 @144Hz

1x HDMI 1.4, max resolution 1920 x 1080 @30Hz

Audio:

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN

Wireless Connectivity: Wi-Fi 6E, Bluetooth 5.3

Expansion Slots:

1x PCIe x16 slot (PCIe 5.0 / 4.0 support depending on CPU)

1x PCIe x16 slot (PCIe 3.0 x4)

Storage:

2x M.2 PCIe SSD slots

4x SATA 6Gb/s

RAID Support: RAID 0, 1, 5, 10 (NVMe), RAID 0, 1, 10 (SATA)

USB Ports:

USB Type-C® USB 3.2 Gen 2

USB Type-C® USB 3.2 Gen 2x2 (via internal header)

USB 3.2 Gen 2 Type-A

USB 3.2 Gen 1

USB 2.0

Internal Connectors:

24-pin ATX Power Connector

8-pin ATX 12V Power Connector

CPU Fan Header

Pump Fan Header

System Fan Headers

RGB and Addressable RGB Headers

USB Headers

TPM Header

Clear CMOS Jumper

Back Panel Ports:

DisplayPort

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2 Type-A

USB Type-C® USB 3.2 Gen 2

RJ-45 LAN

Audio Jacks

Optical S/PDIF Out

Q-Flash Plus Button

Operating System Support: Windows 11 64-bit, Windows 10 64-bit
