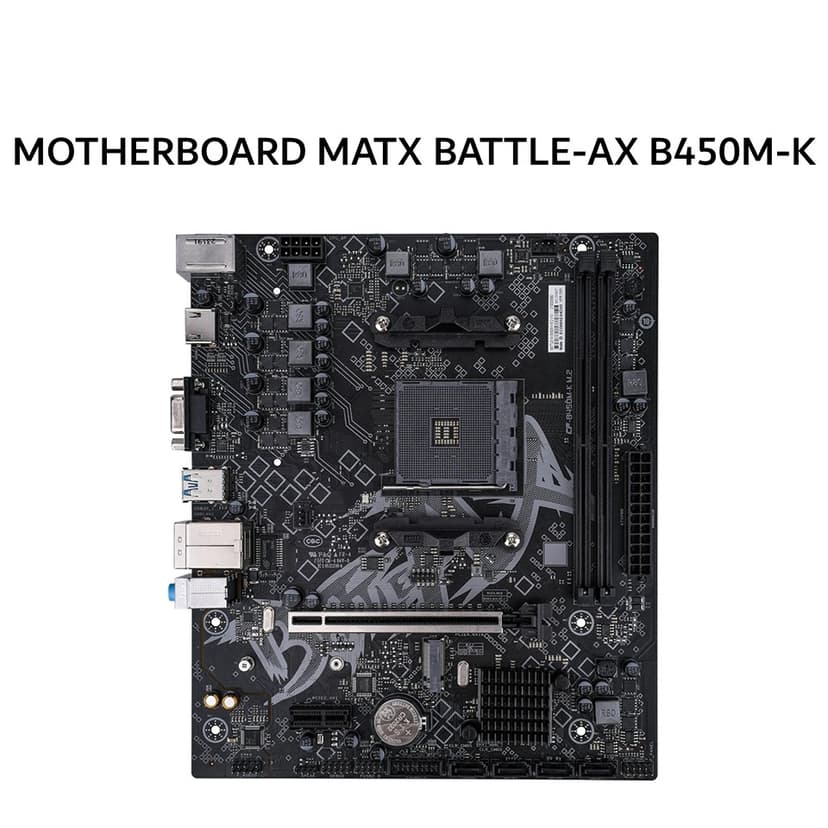

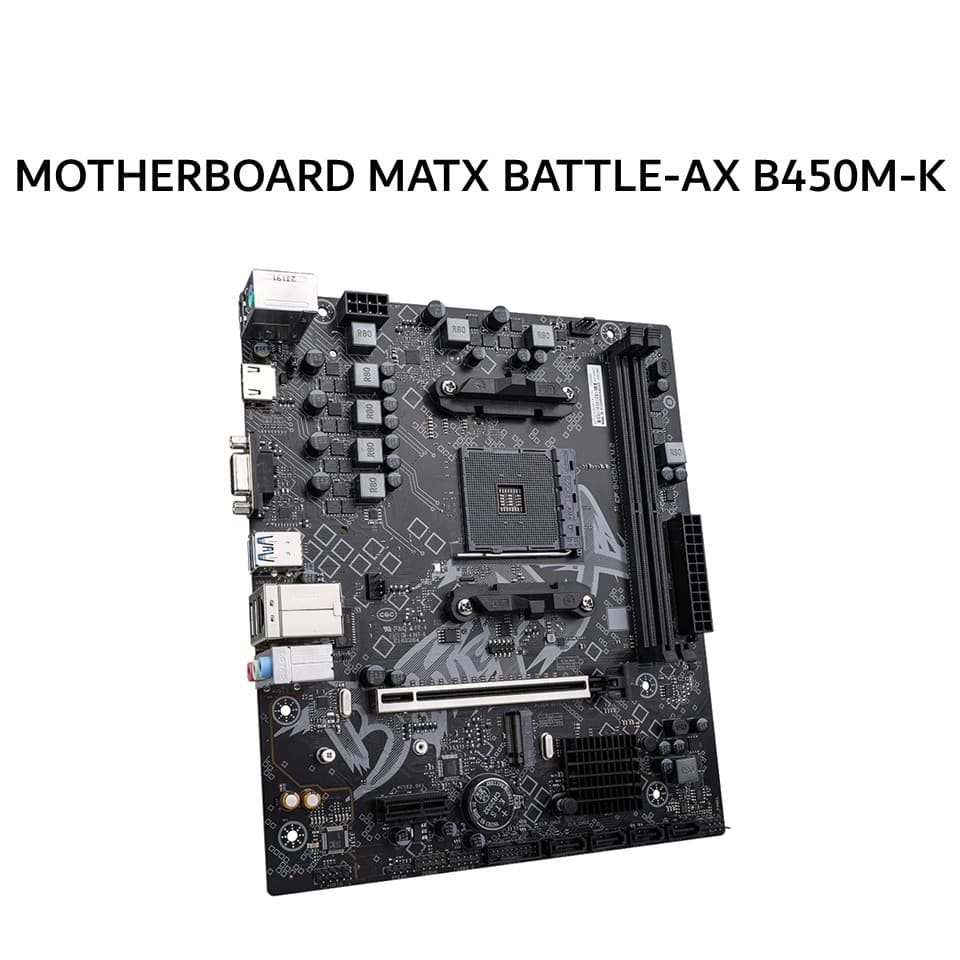

COLORFUL MOTHERBOARD MATX BATTLE-AX B450M-K M.2 DDR4 AM4 /AMD 3Y

SPESIFIKASI

Model: BATTLE-AX B450M-K M.2 V14

Series: BATTLE-AX Series

Chipset: AMD B450

Processor Support: AMD Ryzen™ Series (AM4 Socket)

Memory:

DDR4 Slot: 2 Slot

Max Memory: Up to 64GB (32GB per slot)

Memory Speed: DDR4 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200(OC) / 3000(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz

Memory Channel: Dual Channel

Memory Profile: XMP Supported

Storage:

M.2 Slot: 1 Slot (2242 / 2280, PCIe 3.0 x4 / SATA)

SATA: 4 x SATA 6Gb/s

Expansion Slots:

PCIe x16: 1 x PCIe 3.0 x16

PCIe x1: 1 x PCIe 2.0 x1

Rear I/O Ports:

USB 2.0: 2 Port

USB 3.2 Gen 1 Type-A: 4 Port

HDMI: 1 x HDMI 2.0 (Up to 4K 60Hz)

VGA: 1 Port

PS/2: 1 Port

LAN: 1 x Gigabit LAN

Audio: 3 x Audio Jack (Line In / Line Out / Mic)

Internal Connectors:

CPU Fan Header: 1

System Fan Header: 1

USB 2.0 Header: 1 (Support up to 2 USB 2.0 ports)

USB 3.2 Gen 1 Header: 1 (Support up to 2 USB 3.2 Gen 1 ports)

Front Panel Header: 1

Front Audio Header: 1

Speaker Header: 1

Digital Audio Header: 1

Clear CMOS Jumper: 1

BIOS Burner Pin: 1

Debug LED Pin: 1

USB Live Control Jumper: 1

LAN Chip: RTL8111H Gigabit LAN

Audio Chip: Realtek ALC897, Support up to 5.1 Channel

BIOS: 128M UEFI BIOS, Multi-language Support

Power Management:

Support S3 / S4 Wake-up

Support Network S5 Wake-up

Support USB Wake-up

Support Scheduled Power On

Hardware Monitoring:

CPU Fan Speed Control

System Fan Speed Control

CPU Temperature Monitoring

System Temperature Monitoring

Voltage Monitoring

Form Factor: Micro ATX

Dimensions: 230 x 197 mm
