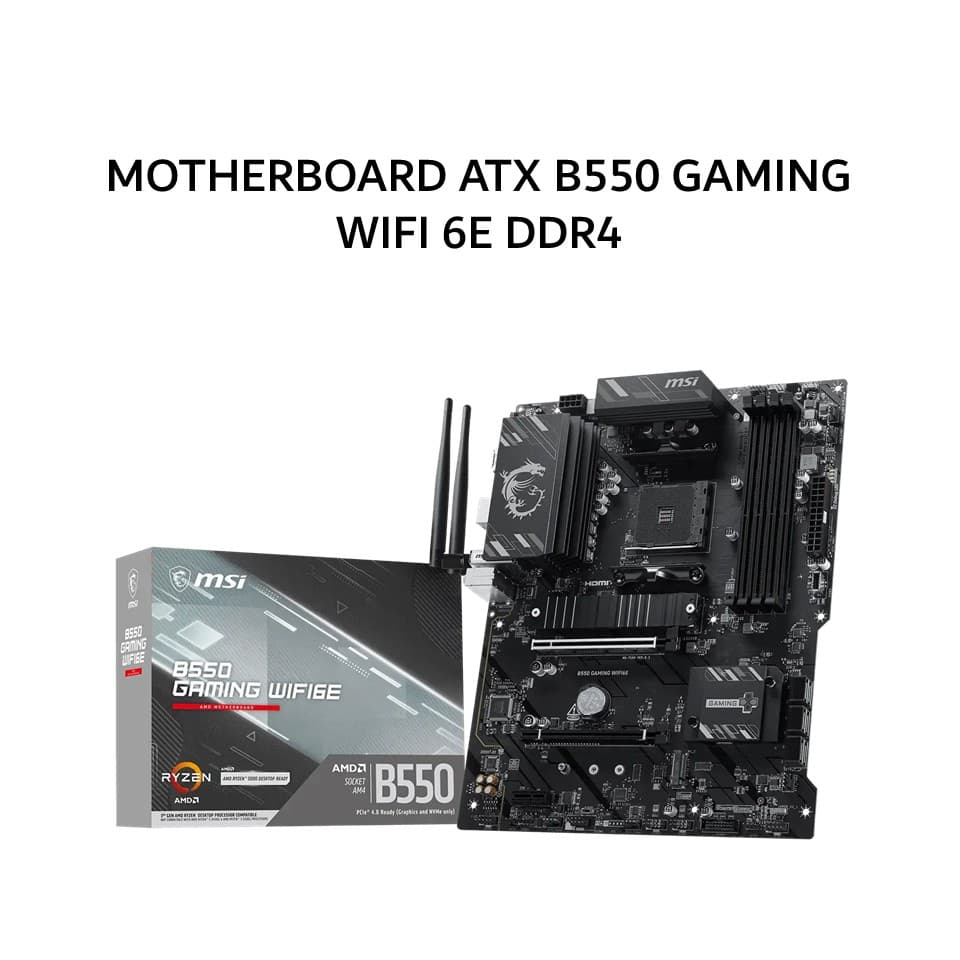

MSI MOTHERBOARD ATX B550 GAMING WIFI 6E DDR4 AM4 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: MSI

Tipe: Motherboard ATX B550 Gaming WiFi 6E DDR4

Color: Black

Chipset: AMD B550

CPU Support: AMD Socket AM4 for AMD Ryzen 5000 Series Ryzen 3000 Series and Ryzen 4000 G Series Desktop Processors

Memory: 4 x DDR4 DIMM Slots Max. 128 GB

DDR4 4866+ OC / 4800 OC / 4733 OC / 4600 OC / 4533 OC / 4400 OC / 4266 OC / 4133 OC / 4000 OC / 3866 OC / 3733 OC / 3600 OC / 3466 OC / 3200 / 3066 / 3000 / 2933 / 2800 / 2667

Dual Channel Memory Architecture

Supports Non ECC UDIMM

Supports ECC UDIMM Non ECC Mode

Supports Unbuffered Memory

Supports A XMP

Graphics Output:

1 x HDMI 1.4 Supports up to 4K 30Hz

1 x DisplayPort 1.2 Supports up to 4K 60Hz

Expansion Slots:

1 x PCIe 4.0 x16

1 x PCIe 3.0 x16 x4 Mode

1 x PCIe 3.0 x1

Storage:

2 x M.2 Slots

M.2_1 Supports PCIe 4.0 x4 and SATA

M.2_2 Supports PCIe 3.0 x4

6 x SATA 6Gb per second

Supports RAID

LAN: Realtek 8111H Gigabit Ethernet

Wireless Connectivity:

WiFi 6E

Bluetooth 5.3

Audio: Realtek ALC897

7.1 Channel High Definition Audio

USB Ports:

Rear USB:

1 x USB 10Gbps Type C

1 x USB 10Gbps Type A

2 x USB 5Gbps Type A

4 x USB 2.0

Front USB:

1 x USB 5Gbps Type C

2 x USB 5Gbps Type A

4 x USB 2.0

Back Panel I O Ports:

1 x HDMI

1 x DisplayPort

1 x RJ45 LAN Port

WiFi Bluetooth Antenna Connectors

1 x USB 10Gbps Type C

1 x USB 10Gbps Type A

2 x USB 5Gbps Type A

4 x USB 2.0

Audio Jacks

Flash BIOS Button

Internal Connectors:

1 x 24 Pin ATX Power Connector

1 x 8 Pin CPU Power Connector

1 x CPU Fan Header

1 x Pump System Fan Header

6 x System Fan Headers

2 x Front Panel Headers

1 x Front Audio Header

1 x COM Port Header

2 x Addressable RGB Gen 2 Headers

1 x RGB Header

1 x TPM 2.0 Header

1 x Chassis Intrusion Header

1 x USB 5Gbps Type C Header

1 x USB 5Gbps Header

2 x USB 2.0 Headers

Special Features:

WiFi 6E

Bluetooth 5.3

Flash BIOS Button

EZ Debug LED

A XMP

BIOS: 256 Mb UEFI BIOS

Operating System Support: Windows 11 64 Bit

Form Factor: ATX

Dimension: 304.8 x 243.84 mm
