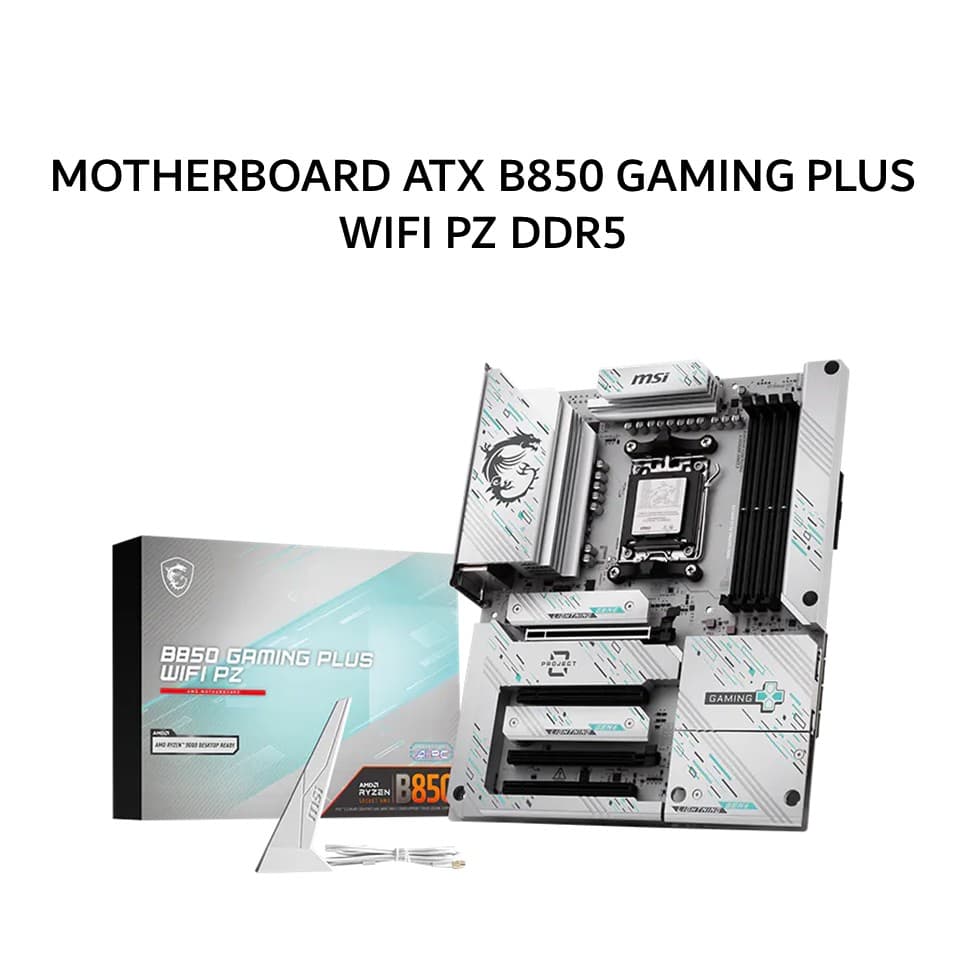

MSI MOTHERBOARD ATX B850 GAMING PLUS WIFI PZ DDR5 AM5 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: MSI

Type: B850 GAMING PLUS WIFI PZ

Chipset: AMD B850

CPU: AMD Socket AM5 for AMD Ryzen 9000 8000 7000 Series Desktop Processors

Memory: 4 x DDR5 UDIMM

Maximum Memory Capacity: 256 GB

Memory Speed: DDR5 8200 5600 MT/s OC 5600 4800 MT/s JEDEC

Memory Type: Non ECC Unbuffered

Memory Channel: Dual Channel

Onboard Graphics:

1 x DisplayPort 1.2

Maximum Resolution: 4K 60Hz

Expansion Slots:

1 x PCIe 5.0 x16

1 x PCIe 3.0 x1

1 x PCIe 4.0 x4

1 x PCIe 3.0 x1

Storage:

3 x M.2

M.2_1: PCIe 5.0 x4

M.2_2: PCIe 4.0 x4

M.2_3: PCIe 4.0 x2

4 x SATA 6G

RAID:

RAID 0 RAID 1 RAID 10 for SATA

RAID 0 RAID 1 RAID 5 for M.2 NVMe

Audio: Realtek ALC897 7.1 Channel High Definition Audio

LAN: Realtek 8126VB 5G LAN

Wireless: Wi Fi 7

Wireless Speed: Up to 5.8Gbps

Bluetooth: Bluetooth 5.4

USB:

4 x USB 2.0 Rear

4 x USB 2.0 Front

1 x USB 5Gbps Type A Rear

4 x USB 5Gbps Type A Front

1 x USB 5Gbps Type C Front

1 x USB 10Gbps Type A Rear

2 x USB 10Gbps Type C Rear

Back Panel Ports:

1 x DisplayPort

1 x USB 10Gbps Type A

2 x USB 10Gbps Type C

1 x USB 5Gbps Type A

2 x USB 2.0

1 x 5G LAN

Wi Fi Bluetooth

Audio Connectors

1 x S PDIF Out

1 x Flash BIOS Button

1 x Clear CMOS Button

Internal I O:

1 x CPU Fan

1 x PUMP SYS Fan

4 x System Fan

1 x ARGB FAN Header

3 x Addressable RGB LED Connector

1 x RGB LED Connector

1 x TPM Header

4 x USB 2.0 Ports

4 x USB 5Gbps Type A Ports

1 x USB 5Gbps Type C Port

Operating System: Windows 11 64 Bit

Form Factor: Back Connect ATX

Dimension: 243.84 x 304.8 mm
