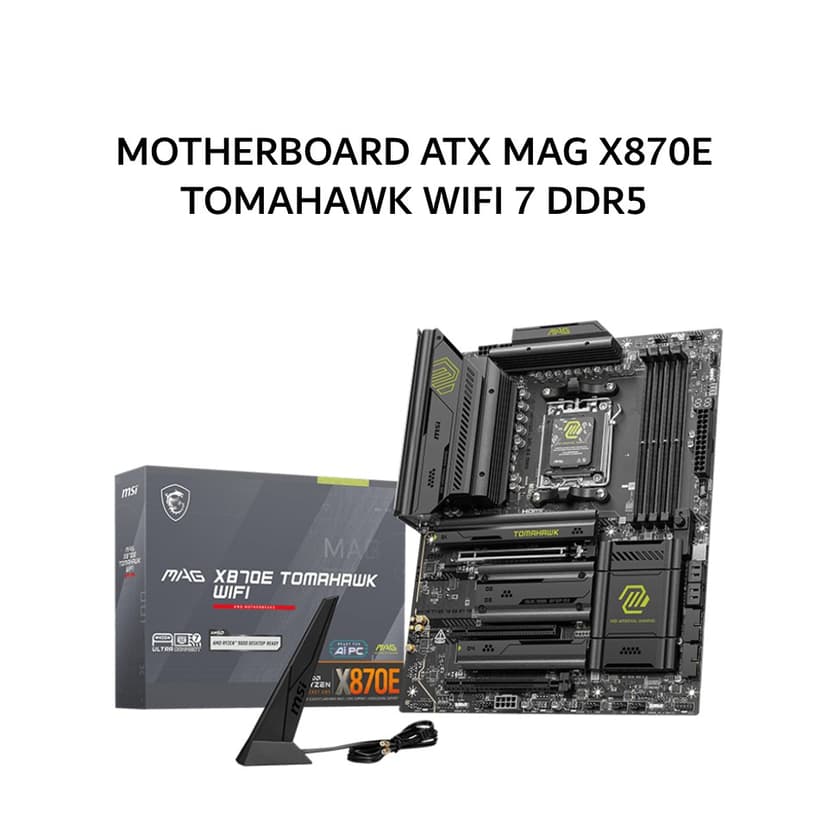

MSI MOTHERBOARD ATX MAG X870E TOMAHAWK WIFI 7 DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: MSI

Chipset: AMD X870E

CPU Support: AMD Ryzen 9000 8000 7000 Series

Socket: AM5

Form Factor: ATX

Memory Type: DDR5

Memory Slot: 4 x DDR5 UDIMM

Max Memory Capacity: 256 GB

Memory Speed: DDR5 8400 to 5600 OC DDR5 5600 to 4800 JEDEC

Memory Support: Dual Channel Non ECC Unbuffered AMD EXPO

Onboard Graphics Output:

HDMI 2.1 up to 8K 60Hz

2 x USB Type C DisplayPort up to 4K 60Hz

Expansion Slots:

1 x PCIe 5.0 x16

1 x PCIe 3.0 x1

1 x PCIe 4.0 x4

Storage:

4 x M.2 Slot

M.2 PCIe 5.0 x4

M.2 PCIe 4.0 x4

4 x SATA 6Gb s

RAID Support:

RAID 0 1 10 SATA

RAID 0 1 5 10 M.2 NVMe

Audio: Realtek ALC4080

7.1 Channel USB Audio

S PDIF Output

LAN: Realtek 5G LAN

Wireless: Wi Fi 7

Bluetooth: Bluetooth 5.4

USB Port:

USB 2.0

USB 5Gbps Type A

USB 10Gbps Type A

USB 10Gbps Type C

USB 20Gbps Type C

USB 40Gbps Type C

Internal Connector:

ATX Power Connector

CPU Power Connector

PCIe Power Connector

CPU Fan Header

System Fan Header

RGB Header

ARGB Header

TPM Header

USB Header

Front Panel Header

Front Audio Header

LED Feature: EZ Debug LED EZ Digit Debug LED

Back Panel Port:

Clear CMOS Button

Flash BIOS Button

HDMI

USB Type A

USB Type C

LAN Port

Wi Fi Antenna

Audio Jack

Operating System Support: Windows 11 64 Bit

Dimensions: 243.84 x 304.8 mm
