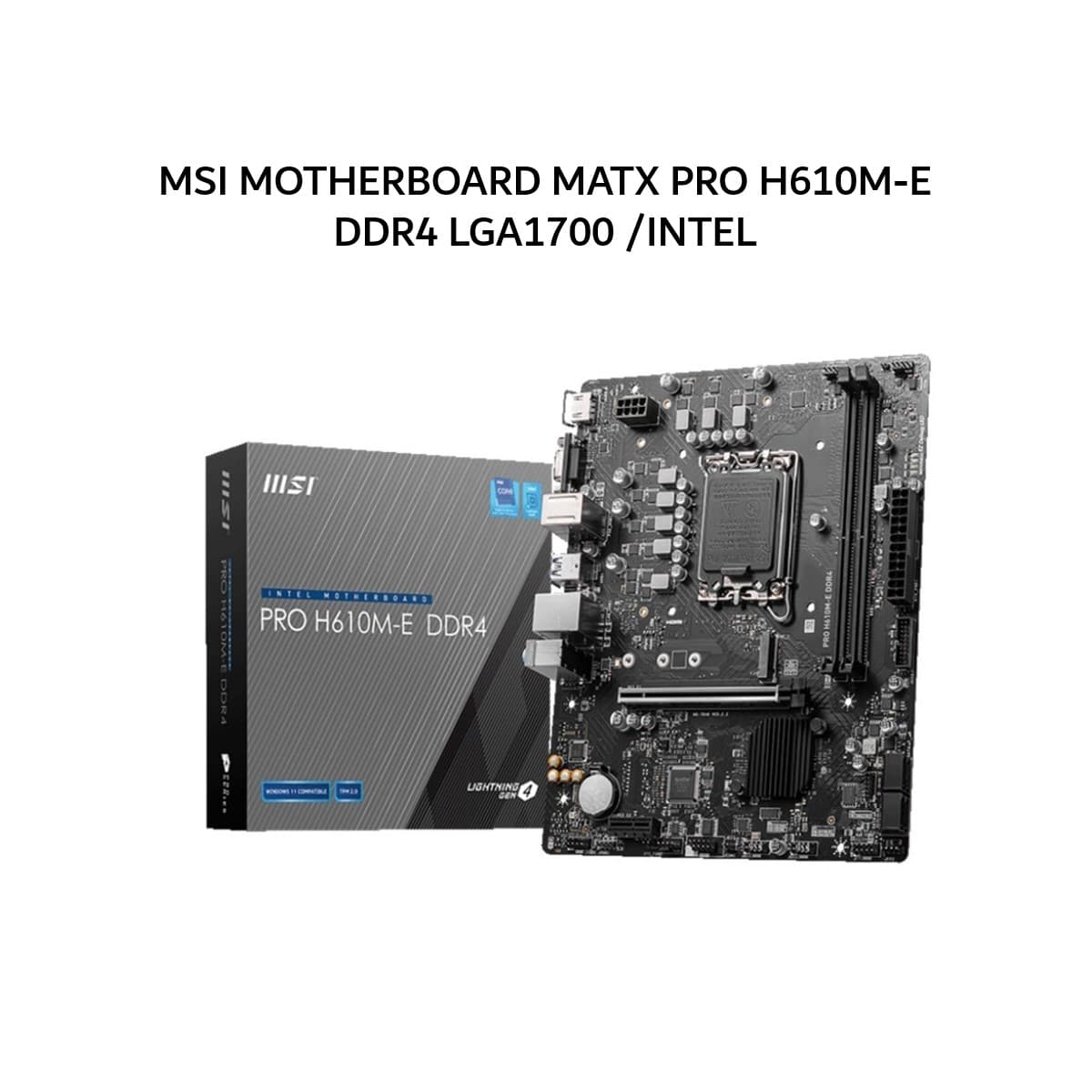

MSI MOTHERBOARD MATX PRO H610M-E DDR4 LGA1700 /INTEL 3Y

Deskripsi

MSI MOTHERBOARD MATX PRO H610M-E DDR4 LGA1700 /INTEL 3Y

Spesifikasi Produk:

- Processor: Mendukung Intel 12th Gen Core, Pentium Gold, Celeron (Socket LGA1700)

- Chipset: Intel H610

- Memory:

- 2 × DDR4 slots, hingga 64GB

- Mendukung DDR4 2133/2666/3200 MHz

- Dual channel architecture

- Non-ECC, un-buffered memory support

- Expansion Slot:

- 1 × PCIe 4.0 x16 (CPU)

- 1 × PCIe 3.0 x1 (Chipset)

- Onboard Graphics:

- 1 × HDMI 1.4 HDR (4K@30Hz)

- 1 × VGA (2048×1536@50Hz, 2048×1280@60Hz, 1920×1200@60Hz)

- Storage:

- 4 × SATA 6Gb/s (Chipset)

- 1 × M.2 (Key M, PCIe 3.0 x4, 2242/2260/2280 SSD)

- Audio: Realtek ALC897 Codec, 7.1 Channel HD Audio

- LAN: Realtek RTL8111H Gigabit LAN

- Power Connectors:

- 1 × 24-pin ATX main power

- 1 × 8-pin +12V power

- Internal USB:

- 1 × USB 3.2 Gen1 (5Gbps, mendukung tambahan 2 port)

- 2 × USB 2.0 (mendukung tambahan 4 port)

- Fan Connectors:

- 1 × 4-pin CPU fan

- 2 × 4-pin system fan

- System Connectors:

- Front panel audio, system panel, chassis intrusion, TPM module, serial port

- Jumpers: 1 × Clear CMOS

Form Factor: Micro ATX

3 YEARS WARRANTY
