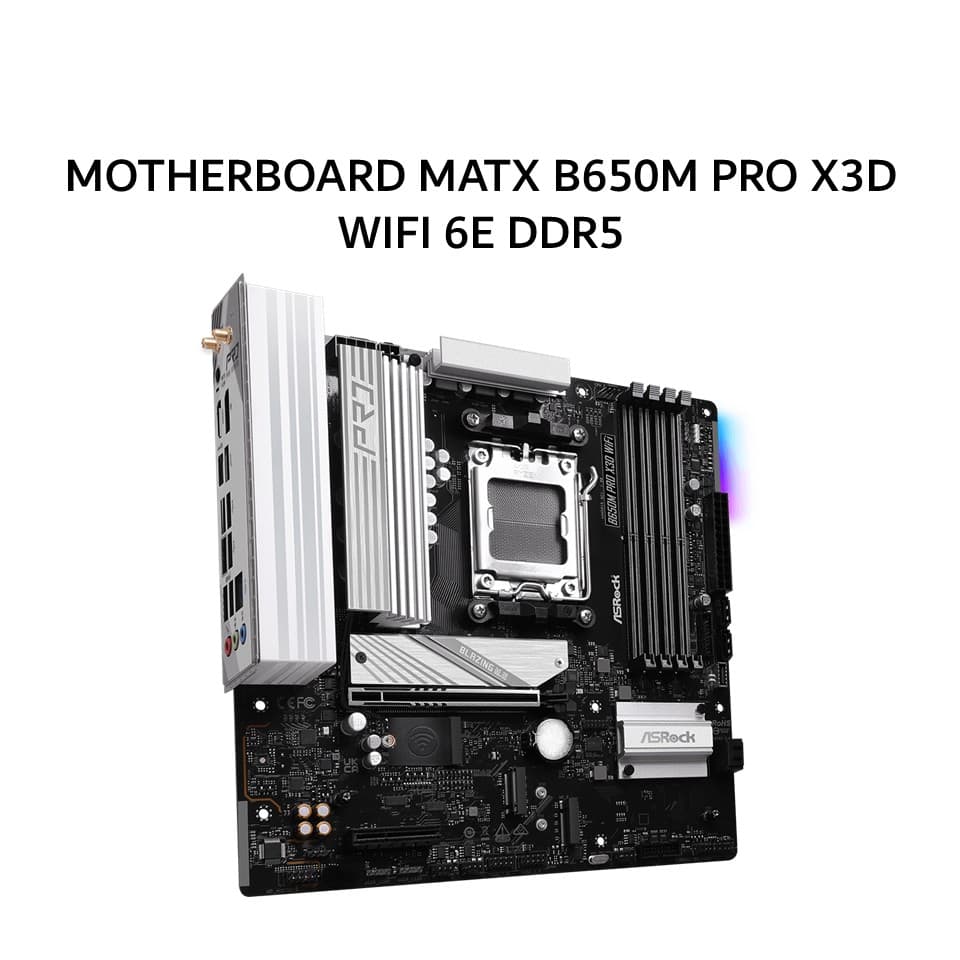

ASROCK MOTHERBOARD MATX B650M PRO X3D WIFI 6E DDR5 AM5 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: ASRock

Tipe: Motherboard MATX B650M PRO X3D

Chipset: AMD B650

Socket: AM5

CPU Support: AMD Ryzen™ 9000 8000 and 7000 Series Processors

Memory Support: DDR5 up to 8000+ OC

Memory Slot: 4x DDR5 DIMM

Max Memory: 256GB

Expansion Slot:

1x PCIe 5.0 x16

1x PCIe 4.0 x4

Storage:

1x M.2 PCIe Gen5 x4

2x M.2 PCIe Gen4 x4

4x SATA3 6Gb/s

LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG

Wireless: WiFi 6E 802.11axe Bluetooth 5.2

Audio: 7.1 Channel HD Audio Realtek ALC897 Nahimic Audio

Rear Interface:

1x HDMI

1x DisplayPort 1.4

1x USB 3.2 Gen2 Type-C

1x USB 3.2 Gen2 Type-A

2x USB 3.2 Gen1

4x USB 2.0

1x RJ-45 LAN Port

1x BIOS Flashback Button

HD Audio Jacks Line in Front Speaker Microphone

Internal Connector:

1x SPI TPM Header

1x RGB LED Header

3x Addressable LED Headers

2x CPU Fan Connectors

3x Chassis Fan Connectors

1x 24-pin ATX Power Connector

1x 8-pin 12V Power Connector

1x 4-pin 12V Power Connector

1x Front Panel Audio Connector

2x USB 2.0 Headers

2x USB 3.2 Gen1 Headers

1x Front Panel USB Type-C Header

Form Factor: Micro ATX

Dimension: 244 x 244 mm

Accessories:

2x SATA Data Cables

2x ASRock WiFi Antennas

OS Support: Windows 10 64-bit Windows 11 64-bit
