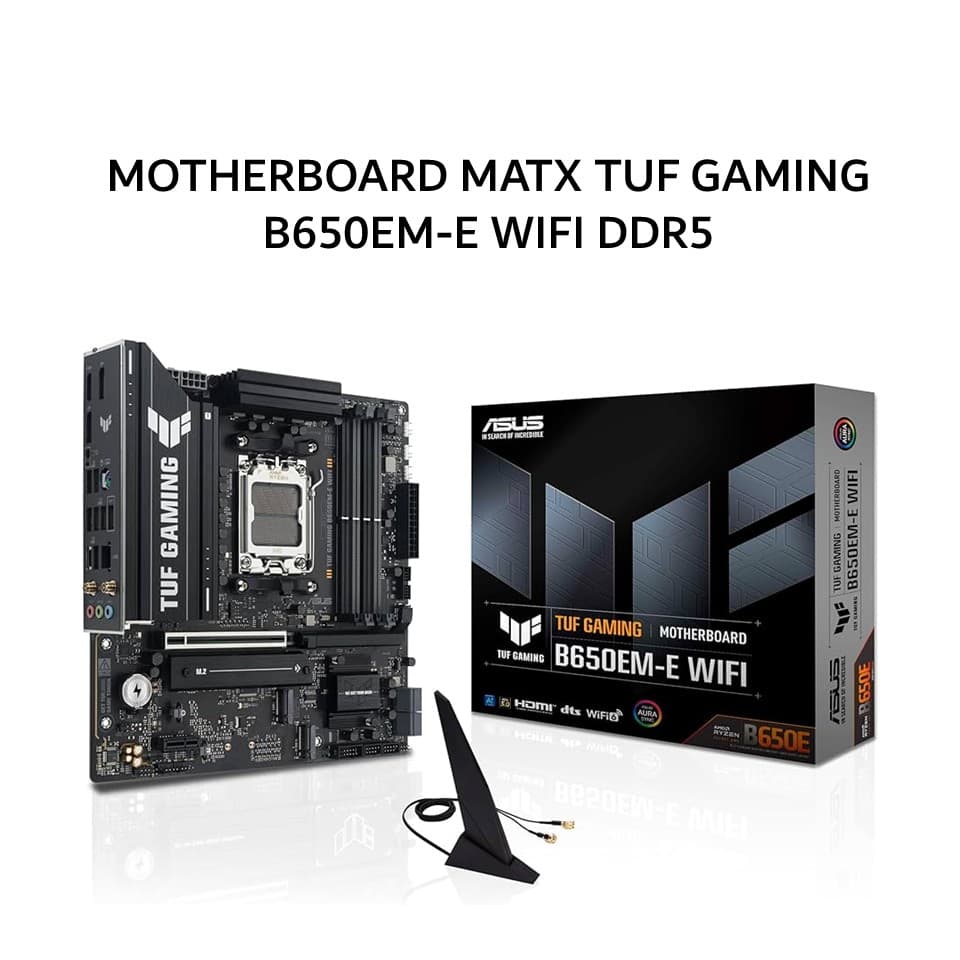

ASUS MOTHERBOARD MATX TUF GAMING B650EM-E WIFI DDR5 AM5 /AMD 3Y

Deskripsi

SPESIFIKASI

Brand: ASUS

Model: TUF GAMING B650EM-E WIFI

Color: Black

CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series Desktop Processors

Chipset: AMD B650

Memory: 4 x DIMM Slots Max. 256GB DDR5

Supports up to 8000+ MT/s OC

Dual Channel Memory Architecture

Supports ECC and Non-ECC Unbuffered DIMM

Supports AMD EXPO

Supports ASUS AEMP

Supports OptiMem II

Graphics Output:

2 x DisplayPort supports up to 8K at 60Hz

1 x HDMI 2.1 supports up to 4K at 60Hz

Expansion Slots:

1 x PCIe 5.0 x16 Slot for Ryzen 9000 and 7000 Series

1 x PCIe 4.0 x16 Slot for Ryzen 8000 Series

1 x PCIe 4.0 x1 Slot

Storage:

3 x M.2 Slots

4 x SATA 6Gb per second Ports

Supports AMD RAIDXpert2 RAID 0 1 5 10

LAN: Realtek 2.5Gb Ethernet with TUF LANGuard

Wireless:

Wi-Fi 6

Bluetooth 5.2

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports up to 24-Bit 192 kHz Playback

USB Ports:

Rear USB:

1 x USB Type-C 10Gbps

1 x USB Type-A 10Gbps

2 x USB Type-A 5Gbps

4 x USB 2.0 Type-A

Front USB:

1 x USB Type-C 5Gbps

2 x USB 5Gbps

4 x USB 2.0

Back Panel I O Ports:

1 x USB Type-C 10Gbps

1 x USB Type-A 10Gbps

2 x USB Type-A 5Gbps

4 x USB 2.0 Type-A

2 x DisplayPort

1 x HDMI

1 x Wi-Fi Module

1 x RJ45 LAN Port

3 x Audio Jacks

1 x BIOS FlashBack Button

1 x PS 2 Keyboard Mouse Combo Port

Internal Connectors:

1 x CPU Fan Header

1 x CPU OPT Fan Header

1 x AIO Pump Header

2 x Chassis Fan Headers

1 x 24-pin ATX Power Connector

1 x 8-pin CPU Power Connector

1 x 4-pin CPU Power Connector

3 x M.2 Slots

4 x SATA 6Gb per second Connectors

1 x USB Type-C 5Gbps Header

1 x USB 5Gbps Header

2 x USB 2.0 Headers

3 x Addressable RGB Gen 2 Headers

1 x Front Panel Audio Header

1 x Front Panel Header

1 x COM Header

1 x Clear CMOS Header

1 x Chassis Intrusion Header

Special Features:

ASUS TUF Protection

DIGI+ VRM

TUF LANGuard

SafeSlot

Stainless Steel Back I O

M.2 Q-Latch

PCIe Slot Q-Release

Q-DIMM

Q-LED

BIOS FlashBack

Pre-mounted I O Shield

Aura Sync RGB

BIOS: 256 Mb Flash ROM UEFI AMI BIOS

Operating System Support: Windows 11 Windows 10 64-bit

Form Factor: Micro ATX

Accessories:

2 x SATA 6Gb per second Cables

TUF Gaming Sticker

M.2 Rubber Package

M.2 SSD Screw Package

Quick Start Guide
