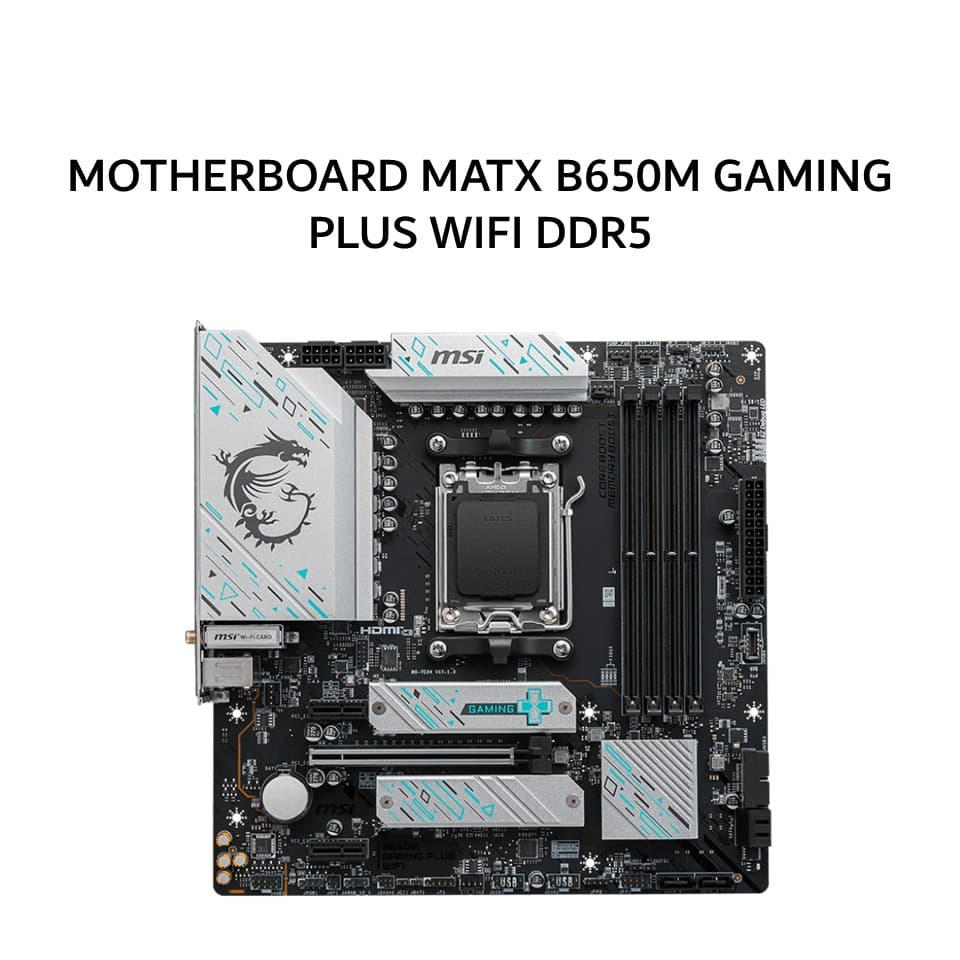

MSI MOTHERBOARD MATX B650M GAMING PLUS WIFI DDR5 AM5 /AMD 3Y

Deskripsi

SPESIFIKASI

Chipset: AMD B650

CPU Support: AMD Ryzen 9000 Series AMD Ryzen 8000 Series AMD Ryzen 7000 Series

CPU Socket: AM5

Memory Type: DDR5

Memory Slots: 4 x DDR5 UDIMM

Maximum Memory: 256 GB

Memory Speed: DDR5 7200+(OC) up to 4800 MHz

Memory Channel: Dual Channel

Memory Support: Non ECC Unbuffered AMD EXPO

Integrated Graphics Output:

HDMI: 1 x HDMI 2.1 up to 4K 60Hz

DisplayPort: 1 x DP 1.4 up to 4K 60Hz

Expansion Slots:

PCIe x16: 1 x PCIe 4.0 x16

PCIe x1: 2 x PCIe x1

Audio: Realtek ALC897

Audio Channels: 7.1 Channel HD Audio

Storage:

M.2 Slots: 2 x M.2 PCIe 4.0 x4

M.2 Form Factor: 2280 2260

SATA: 4 x SATA 6Gb/s

RAID Support:

SATA RAID: RAID 0 RAID 1 RAID 10

M.2 NVMe RAID: RAID 0 RAID 1

USB Ports:

USB 2.0 Front: 4 x USB 2.0

USB 5Gbps Front: 2 x USB 5Gbps Type A

USB 5Gbps Rear: 4 x USB 5Gbps Type A

USB 10Gbps Rear: 3 x USB 10Gbps Type A

USB 10Gbps Type C Rear: 1 x USB 10Gbps Type C

USB 10Gbps Type C Front: 1 x USB 10Gbps Type C

LAN: Realtek RTL8125BG 2.5Gbps LAN

Wireless:

WiFi: Wi-Fi 6E

Bluetooth: Bluetooth 5.3

Internal Connectors:

ATX Power Connector: 1

CPU Power Connector: 2

CPU Fan Header: 1

Pump Fan Header: 1

System Fan Header: 3

Front Panel Header: 2

Front Audio Header: 1

RGB Header: 2 x RGB 2 x Addressable RGB

TPM Header: TPM 2.0

LED Feature: 4 x EZ Debug LED

Back Panel Ports:

HDMI

DisplayPort

2.5G LAN

USB 3.2 Gen 2 Type A

USB 3.2 Gen 2 Type C

USB 3.2 Gen 1 Type A

WiFi Antenna

Audio Jacks

Flash BIOS Button

Operating System Support: Windows 11 64 bit Windows 10 64 bit

Form Factor: mATX

PCB Size: 243.84 x 243.84 mm
