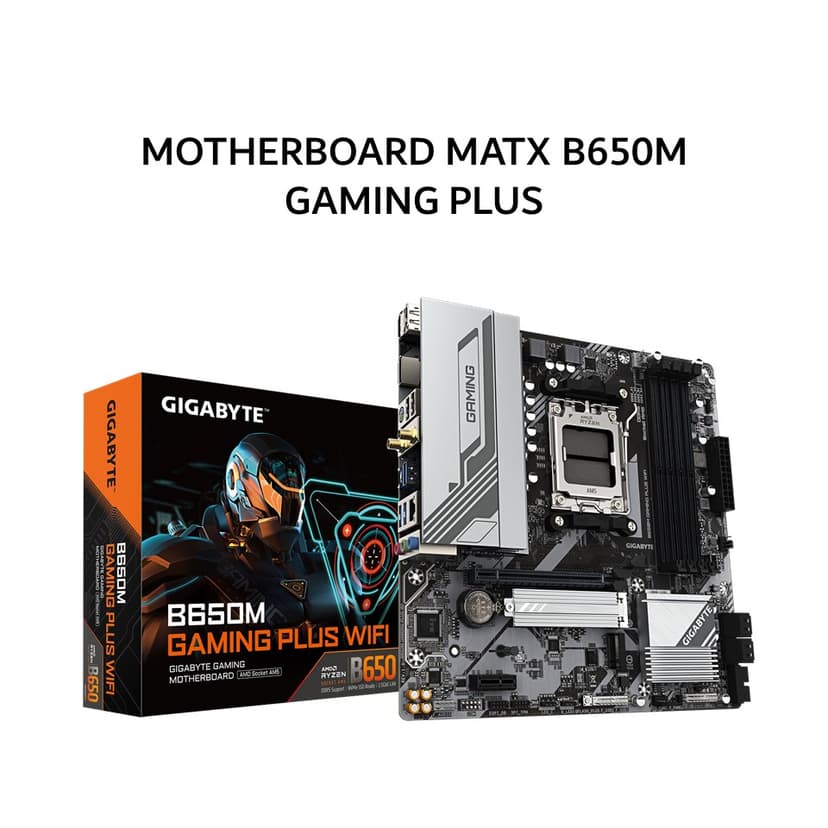

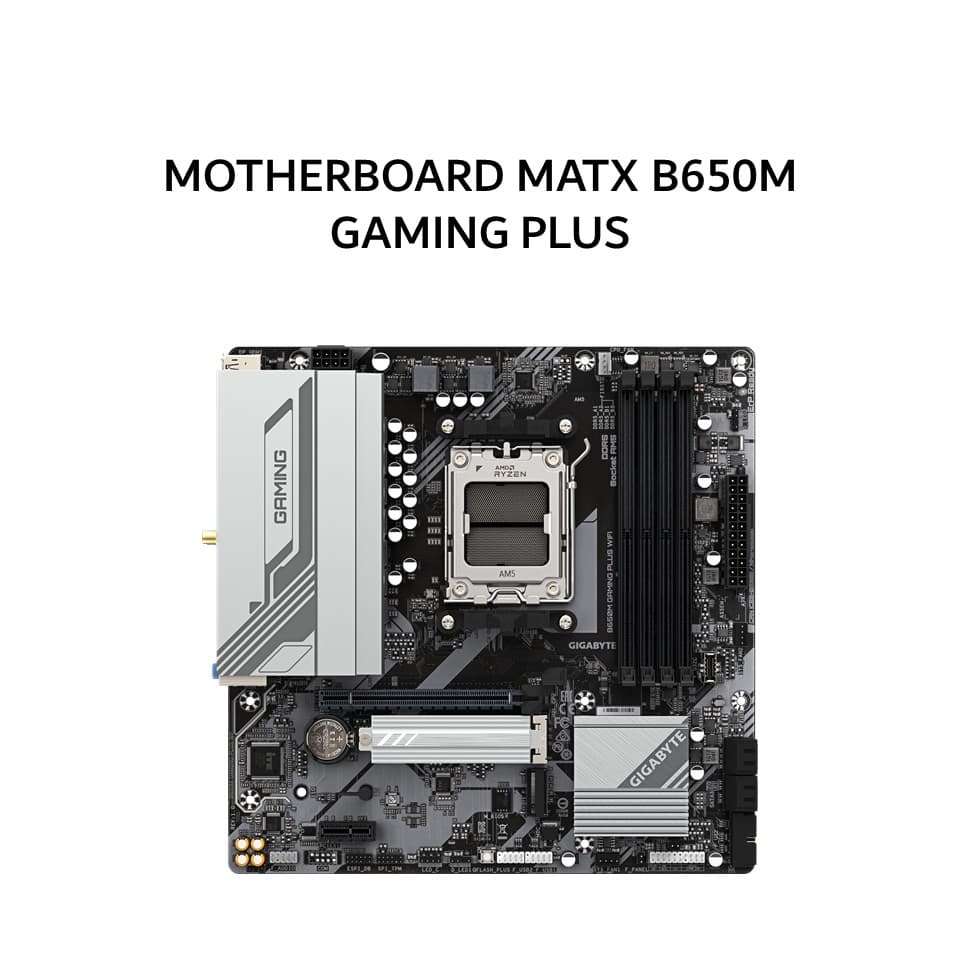

GIGABYTE MOTHERBOARD MATX B650M GAMING PLUS WIFI DDR5 AM5 /AMD 3Y

SPESIFIKASI

Brand: Gigabyte

Chipset: AMD B650

Form Factor: Micro ATX

Dimensions: 24.4 x 24.4 cm

Processor Support:

AMD Socket AM5

Support AMD Ryzen™ 7000 Series

Support AMD Ryzen™ 8000 Series

Support AMD Ryzen™ 9000 Series

Memory:

4 x DDR5 DIMM Slot

Max Memory: Up to 256 GB

Memory Type: DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s

Dual Channel Memory Architecture

Support AMD EXPO™ and XMP

Integrated Graphics:

AMD Radeon™ Graphics

Display Output:

2 x DisplayPort 1.4 (Up to 3840 x 2160 @144Hz)

1 x HDMI 2.1 (Up to 4096 x 2160 @60Hz)

Support Triple Display

Expansion Slots:

1 x PCI Express x16 (PCIe 4.0)

1 x PCI Express x1 (PCIe 3.0)

Storage:

2 x M.2 Slot PCIe 4.0

4 x SATA 6Gb/s

Support RAID 0 / 1 / 10 (NVMe & SATA)

Audio:

Realtek® Audio Codec

High Definition Audio

Support 2 / 4 / 5.1 / 7.1 Channel

LAN:

Realtek® 2.5GbE LAN

Wireless Connectivity:

Realtek® Wi-Fi 6E / Wi-Fi 6

Bluetooth 5.3

USB Ports:

USB Type-C® USB 3.2 Gen 1

USB 3.2 Gen 1

USB 2.0

Rear I/O Ports:

1 x PS/2 Port

1 x USB Type-C®

3 x USB 3.2 Gen 1

2 x USB 2.0

1 x HDMI

2 x DisplayPort

1 x RJ-45 LAN

3 x Audio Jack

Internal Connectors:

24-pin ATX Power

8-pin CPU Power

CPU Fan Header

System Fan Header

RGB & ARGB Header

USB Header

Front Panel Header

Clear CMOS Jumper

Q-Flash Plus Button

BIOS:

256 Mbit AMI UEFI BIOS

Operating System Support:

Windows 11 64-bit

Windows 10 64-bit

Special Features:

Q-Flash

Q-Flash Plus

GIGABYTE Control Center

Warranty: Resmi Distributor Indonesia
