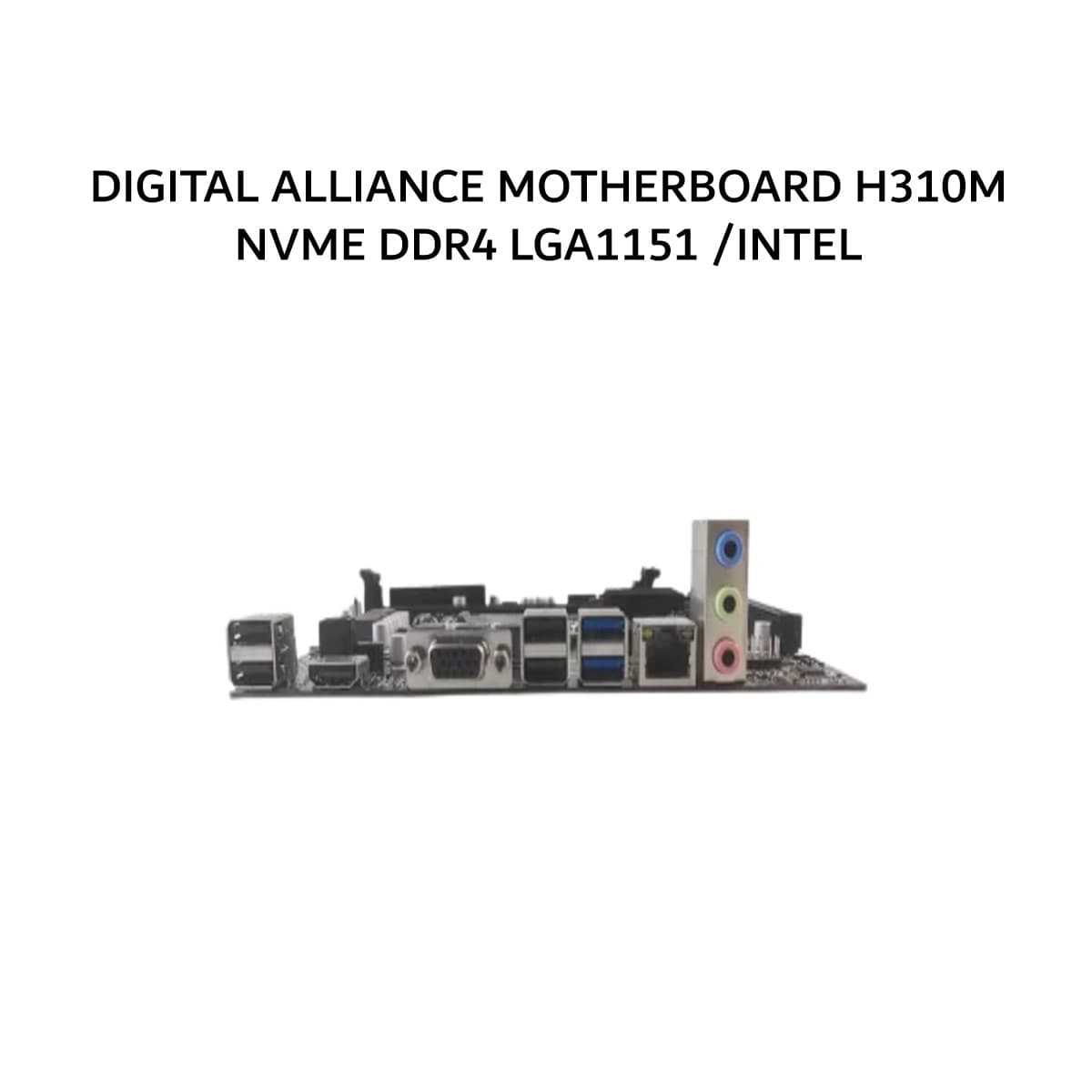

DIGITAL ALLIANCE MOTHERBOARD H310M NVME DDR4 LGA1151 /INTEL 2Y

Deskripsi

DIGITAL ALLIANCE MOTHERBOARD H310 NVME LGA1151 DDR4 2Y

CPU SUPPORT Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)

Supports CPU up to 95W

Supports Intel® Turbo Boost 2.0 Technology

POWER DESIGN CPU Power: 6 Phase

Memory Power: 2 Phase

CHIPSET INTEL H310

DISPLAY Integrated Graphics Dependent on installed CPU

1 × HDMI, max resolution up to 4K × 2K (4096×2160) @ 30Hz

1 × D-Sub, max resolution up to 1920×1200 @ 60Hz

MEMORY 2 × SO-DIMM DDR4

Support Dual Channel 1866 / 2133 / 2400 MHz DDR4 1.2V

Max Support up to 32GB

BIOS AMI UEFI BIOS

EXPANSION SLOTS 1 × M.2 Socket (M Key)

Supports 2230 / 2242 / 2260 / 2280 M.2 SATA3 6.0 Gb/s module

STORAGE 3 × SATA3 6.0 Gb/s Connectors

Support NCQ, AHCI and Hot Plug

NETWORKING 1 × Realtek RTL8105E 100M LAN Controller

REAR PORTS • 2 × USB 2.0 Mouse / Keyboard Ports

1 × HDMI Port

1 × VGA Port

2 × USB 2.0 Ports (ESD Protection)

2 × USB 3.1 Gen1 Ports (ESD Protection)

1 × RJ-45 LAN Port with LED (ACT/LINK & SPEED)

HD Audio Jacks: Line-in / Front Speaker / Microphone

AUDIO Realtek ALC662 Codec

FAN HEADERS 1 × 4-pin CPU FAN

1 × 3-pin SYSTEM FAN

EXCLUSIVE FEATURES • 1 × Chassis Intrusion & Speaker Header

1 × CPU Fan Connector (4-pin)

1 × Chassis / Water Pump Fan Connector (4-pin, Smart Fan Control)

1 × 24-pin ATX Power Connector

1 × 8-pin 12V Power Connector

1 × Front Panel Audio Connector

2 × USB 2.0 Headers (support 4 USB 2.0 ports, ESD Protection)

1 × USB 3.1 Gen1 Header (support 2 ports, ESD Protection)

OPERATING SYSTEM Linux, Ubuntu, Windows 10 / 11

FORM FACTOR ATX Form Factor: 170 mm × 190 mm
